Level Control System Sensor, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the nuts -1- and the cover -2-.

Fig 1: Identifying Nuts And Cover

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2-.

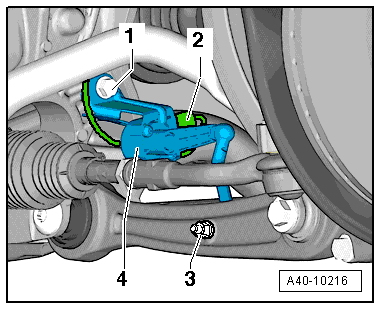

Fig 2: Disconnecting Harness Connector

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -3-.

-- Remove the bolt -1-.

-- Remove the level control system sensor -4-.
