Guide Link, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the wheel.

-- Remove the noise insulation, refer to OVERVIEW - NOISE INSULATION .

-- Remove the bolts -arrows- and move the subframe shield -1- to the side, where applicable.

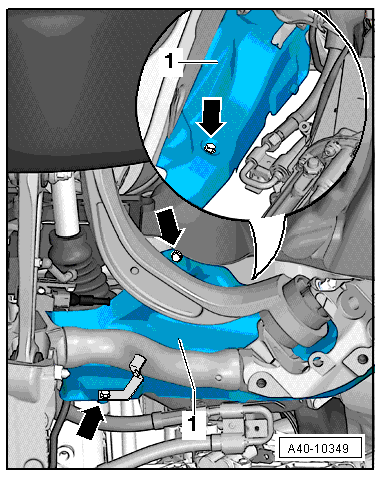

Fig 1: Identifying Subframe Shield

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut from the guide link joint pins enough so it is flush with the joint pin threads. Counterhold the joint pins if necessary.

To protect thread, screw nut on pin a few turns.

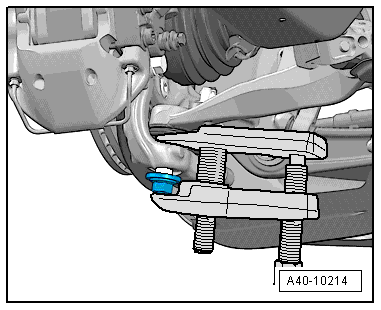

Fig 2: Identifying Bolt -1-

Courtesy of AUDI OF AMERICA, LLC

-- Press the guide link joint pin off the conical seat using the Puller - Ball Joint T40010A.

NOTE:

Be careful not to damage CV boot in the process!

Make sure that both puller lever arms are parallel to each other when using greatest force.

-- Disconnect the threaded connection -1-.

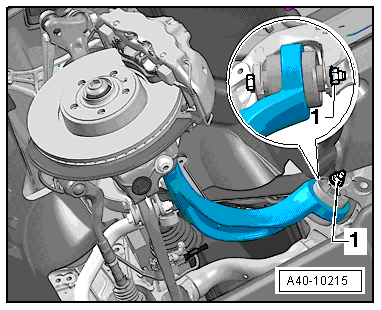

Fig 3: Guide Link & Fasteners

Courtesy of AUDI OF AMERICA, LLC

-- Remove guide link.
