Control Arm, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the wheel.

-- Remove the noise insulation, refer to OVERVIEW - NOISE INSULATION .

-- In vehicles with level control system sensor, unscrew nut -2-.

Fig 1: Identifying Control Arm And Fasteners

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the bolting -3-.

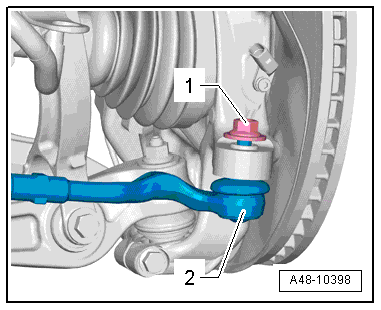

-- Remove the nut -1- from the tie rod end joint pin -2- until it is flush with the joint pin threads. Counterhold when loosening if necessary.

Fig 2: Identifying Tie Rod End Joint Pin

Courtesy of AUDI OF AMERICA, LLC

NOTE:

To protect thread, screw nut on pin a few turns.

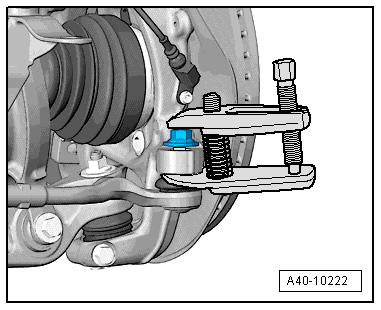

-- Remove the tie rod end from the wheel bearing housing using the Puller - Ball Joint T40010A. Remove the nut.

Fig 3: Removing Tie Rod Ball Joint

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Make sure that both puller lever arms are parallel to each other when using greatest force, adjust if necessary.

-- Disconnect the threaded connection -1-.

Fig 4: Identifying Control Arm And Fasteners

Courtesy of AUDI OF AMERICA, LLC

NOTE:

To remove the bolt -1-, turn the steering gear all the way to the left or right depending on the side of the vehicle.

-- Remove the control arm from the subframe and move it to the rear.

-- Remove the nut from the ball joint pins just enough so it is flush with the joint pin threads. Counterhold when loosening if necessary.

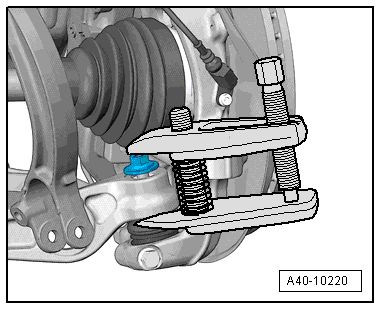

-- Press the control arm joint pin off the conical seat using the Puller - Ball Joint T40010A.

Fig 5: Identifying Ball Joint Pin In Conical Seat T40010 A

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Make sure that both puller lever arms are parallel to each other when using greatest force, adjust if necessary.

Be careful not to damage CV boot in the process!

In order to not damage the joints of the upper control arms, the wheel bearing housing must be braced against too strong rebound using the Engine and Gearbox Jack VAS6931, for example.

-- Remove the nut from the control arm joint pin.

-- Remove track control arm.
