Ball Joint, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

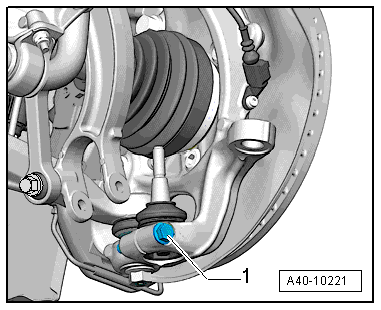

Fig 1: Identifying Ball Joint

Courtesy of AUDI OF AMERICA, LLC

-- Remove the control arm, refer to CONTROL ARM, REMOVING AND INSTALLING .

-- Remove the bolt -1-.

-- Insert a washer or the like -2- into the slot in the wheel bearing housing (the washer must match the width of the slot exactly).

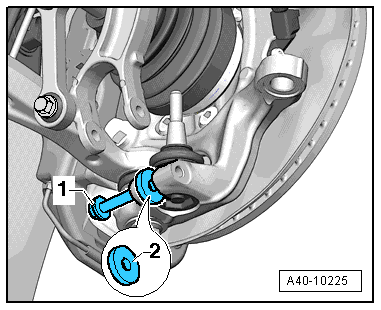

Fig 2: Identifying Bolt And Washer

Courtesy of AUDI OF AMERICA, LLC

-- Install the bolt -1- until it touches the back of the washer.

-- Side the wheel bearing housing slot by installing the bolt -1- further (one half turn).

-- Remove the ball joint from the wheel bearing housing.
