Ball Joint, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

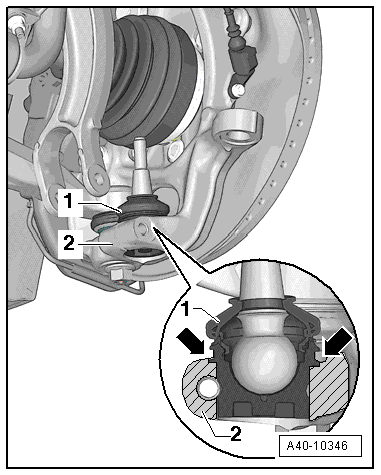

Fig 1: Identifying Lower Ball Joint

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

-- Install the ball joint -1- into the wheel bearing housing -2- as far as the contact surface -arrows-.

NOTE:

If the ball joint -1- is not inserted up to the contact surface -arrows- then the threaded connection on the wheel bearing housing -2- could get damaged.

Tightening specifications, refer to OVERVIEW - CONTROL ARM, BALL JOINT, GUIDE LINK AND LEVEL CONTROL SYSTEM SENSOR .

-- Install the control arm, refer to CONTROL ARM, REMOVING AND INSTALLING .

-- Tighten the wheel, wheel bolt tightening specification: 140 Nm. Refer to AUDI SQ5 TYPE 8R, MY 2012 - 2015 .

-- To determine if an axle alignment is required, see Table, refer to WHEN A VEHICLE ALIGNMENT IS NECESSARY .
