Cap And Guide Pin, Replacing: Notes

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

Install the repair kit if the caps or guide pins are damaged. Use supplied grease packet to lubricate guide pins

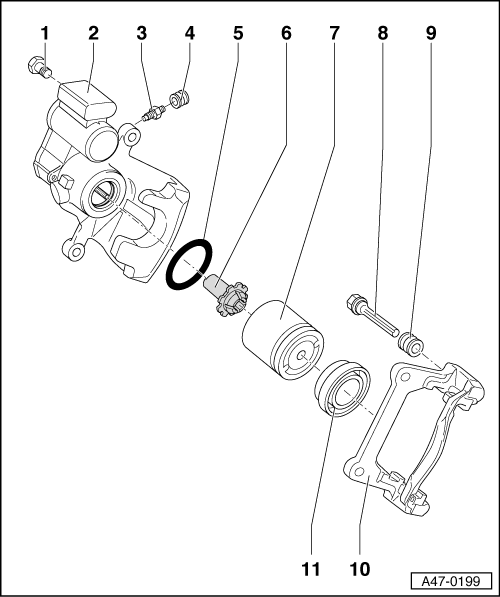

Fig 1: Brake Caliper, Servicing Overview

Courtesy of AUDI OF AMERICA, LLC
