Cap And Guide Pin, Replacing: Notes

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

The guide pins must be removed if the protective caps are damaged.

NOTE:

The single-piston brake 1LA/1LJ/1ZB/1ZT is described.

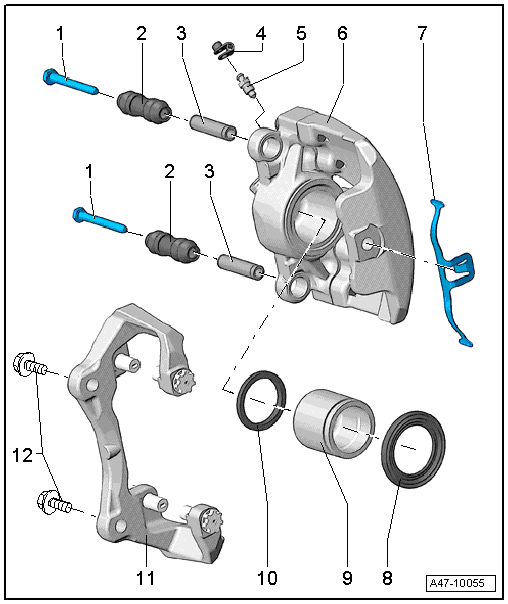

Fig 1: Brake Caliper Exploded View

Courtesy of AUDI OF AMERICA, LLC
