Overview - Fender Repair Set

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

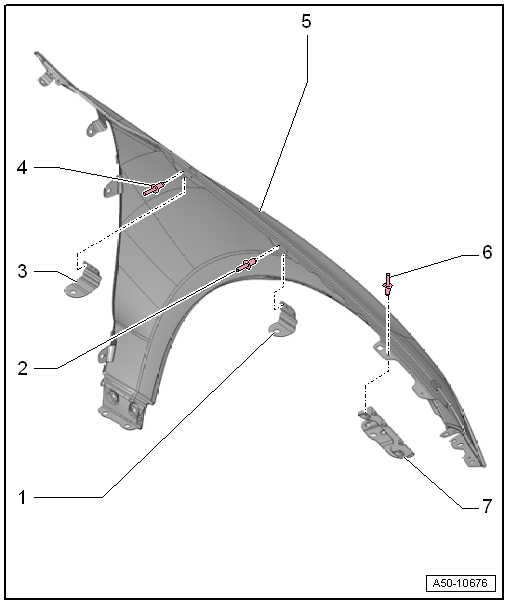

Fig 1: Overview Of Front Fender Repair Set
GWWA50-10676Courtesy of AUDI OF AMERICA, LLC
  1. Center Bracket
  2. Blind Rivet
    • Quantity: 2
  3. Rear Bracket
  4. Blind Rivet
    • Quantity: 2
  5. Fender
  6. Blind Rivet
    • Quantity: 2
  7. Front Bracket
