Fender, Removing And Installing: Removing: Notes

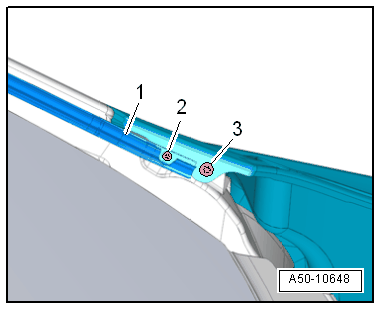

Fig 1: View Of Drip Rail Mount And Rivet

Courtesy of AUDI OF AMERICA, LLC

-- Remove the drip rail. Refer to DRIP RAIL, REMOVING AND INSTALLING .

-- Drill out the rivet -2- on the drip rail mount -1-.

-- Remove the bolt -3-.

-- Open the front doors.

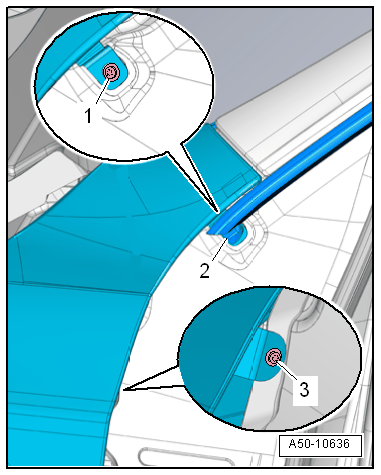

Fig 2: View Of Front Fender Fasteners (Front Door Side)

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the roof trim molding around the A-pillar. Refer to OVERVIEW - ROOF TRIM MOLDING .

-- Loosen the bracket -2- for the retainer from off the bolt.

-- Remove the bolts -1 and 3-.

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

-- Remove the seal from the fender.

-- Remove the headlamps. Refer to HEADLAMP, REMOVING AND INSTALLING .

-- Remove the windshield washer fluid reservoir. Refer to WINDSHIELD WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .

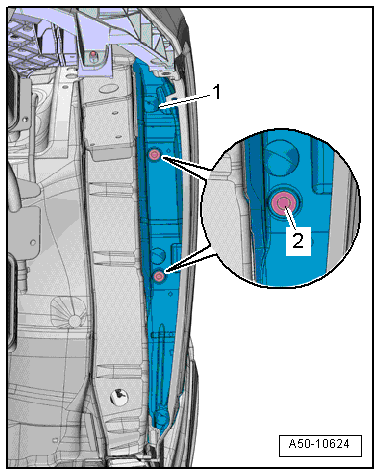

Fig 3: Identifying End Plate Fasteners

Courtesy of AUDI OF AMERICA, LLC

-- Version 1  : Remove the bolt and the expanding clip.

-- Version 2  : Remove expanding rivets -2-.

-- Remove the end plate -1- downward.

-- Remove the front bumper cover mount. Refer to BUMPER GUIDES, REMOVING AND INSTALLING .

-- Remove the bolts -1, 2, and 3-.

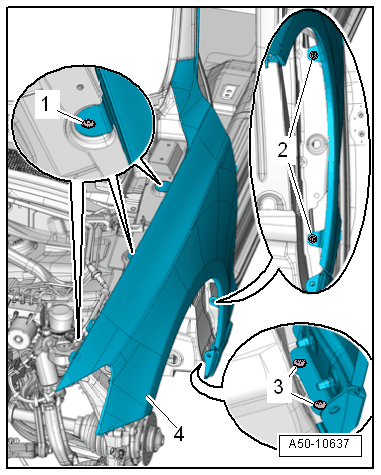

Fig 4: Identifying Front Fender Fasteners

Courtesy of AUDI OF AMERICA, LLC

-- Remove the fender -4-.
