Component Location Overview - Rearview Camera System
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

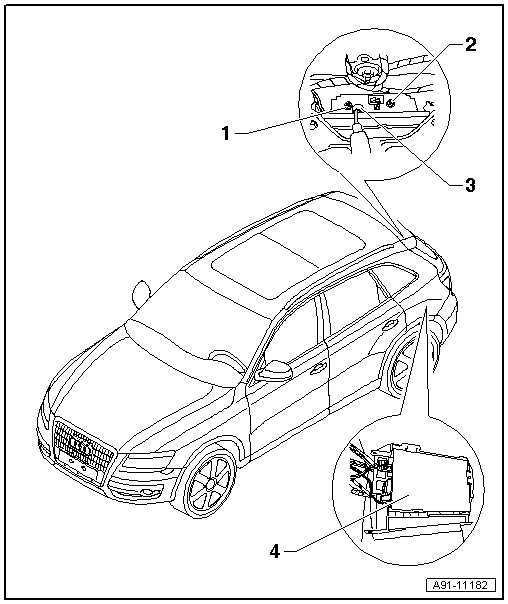

- Nut
- 6 Nm
- Nut
- 6 Nm
- Rearview Camera -R189-
- In the rear lid handle
- Removing and installing, refer to Rearview Camera -R189-, REMOVING AND INSTALLING .
- Calibrating, refer to REARVIEW CAMERA SYSTEM, CALIBRATING .
- Rearview Camera System Control Module -J772-
- Behind the left luggage compartment trim panel
- Connector assignment, refer to Rearview Camera System Control Module -J772- CONNECTORS .
- Removing and installing, refer to Rearview Camera System Control Module -J772-, REMOVING AND INSTALLING .
- Calibrating, refer to REARVIEW CAMERA SYSTEM, CALIBRATING .
