CD Changer -R41- CONNECTOR ASSIGNMENT, MMI

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: CD Changer R41, Multi-Pin Connector Assignments

Courtesy of AUDI OF AMERICA, LLC

A -

Black 8-pin connector (T8aa)

B -

MOST Bus

NOTE:

Unlisted connector terminals are not assigned.

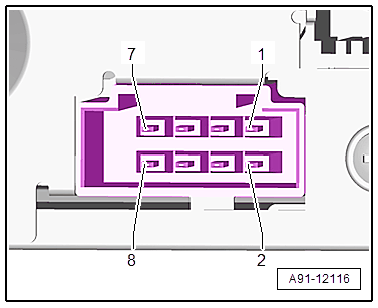

Fig 2: 1 - 8-Pin Connector -T8g-

Courtesy of AUDI OF AMERICA, LLC

Terminal 31
Terminal 30
Not Assigned
Not Assigned
Ring-break Diagnostic Cable

Fig 3: 2 - MOST Bus

Courtesy of AUDI OF AMERICA, LLC

Input
Output
