Special Purpose Vehicle Control Module -J608-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
-- With the ignition switched off, disconnect the ground cable from the battery, refer to BATTERY, DISCONNECTING AND CONNECTING .
-- Open the cover for the left luggage compartment side trim panel.

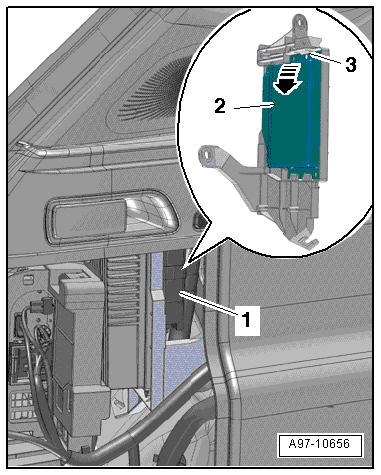

-- Disconnect the connector -1- on the control module.
-- Push the clip -3- upward and move the Special Purpose Vehicle Control Module -J608- -2- in direction of -arrow- out of the frame.
