Overview - Spring Mat: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

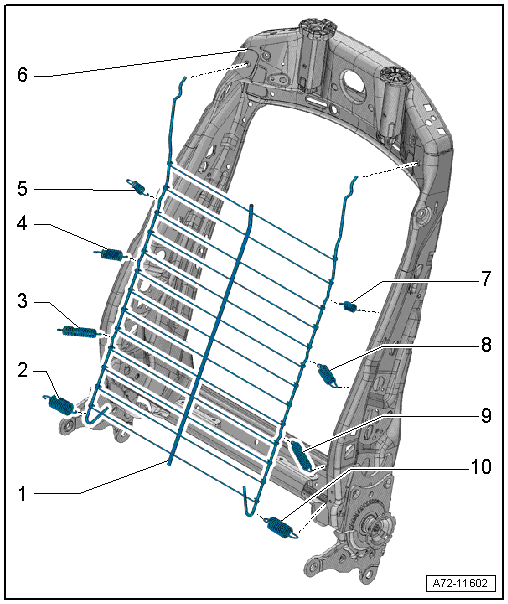

Fig 1: Front Backrest Spring Mat Overview
GWWA72-11602Courtesy of AUDI OF AMERICA, LLC
  1. Spring Mat
  2. Bottom Spring
    • Not available individually
  3. Center Spring
    • Not available individually
  4. Center Spring
    • Not available individually
  5. Upper Pull-Spring
    • Not available individually
  6. Backrest Frame
  7. Upper Pull-Spring
    • Not available individually
  8. Center Spring
    • Not available individually
  9. Center Spring
    • Not available individually
  10. Bottom Spring
    • Not available individually
