Overview - Memory Seat/Steering Column Adjustment Control Module
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

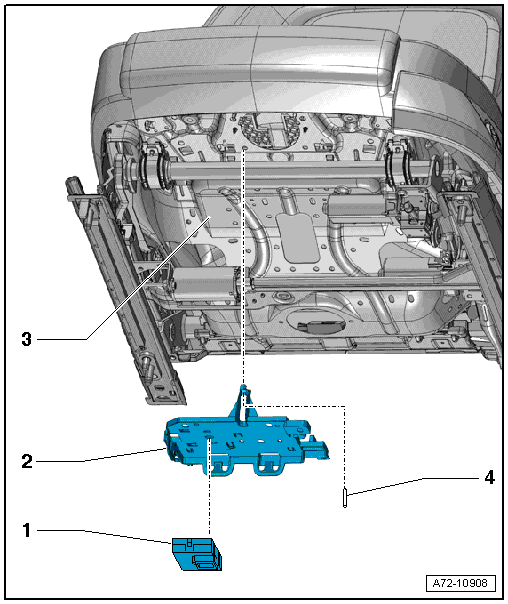

- Control Module
- Driver side: Memory Seat/Steering Column Adjustment Control Module -J136-
- Front passenger side: Front Passenger Memory Seat Control Module -J521-
- Comfort driver seat: Left Front Seat Ventilation Control Module -J800- integrated
- Comfort front passenger seat: Right Front Seat Ventilation Control Module -J799- integrated
- Clipped with the bracket
- Removing and installing. Refer to MEMORY SEAT/STEERING COLUMN ADJUSTMENT CONTROL MODULE, REMOVING AND INSTALLING .
- Bracket
- Removing and installing. Refer to MEMORY SEAT/STEERING COLUMN ADJUSTMENT CONTROL MODULE BRACKET, REMOVING AND INSTALLING .
- Front Seat
- Pin
- For securing the bracket to the seat pan

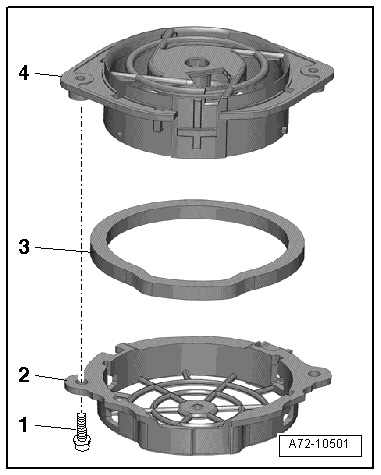

- Bolt - 1.5 Nm
- Cover grille
- Seal
- Seat cushion fan
