Memory Seat/Steering Column Adjustment Control Module, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Attach the front seat to the Engine/Transmission Holder - Seat Repair Fixture VAS6136. Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

-- Disconnect the connectors -2 through 5- on the control module -1-.

Fig 1: Harness Connectors -2 To 5- On Control Module -1-

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the tabs -arrows- using the Trim Removal Wedge 3409.

-- Carefully tilt the control module -1- in the -direction of arrow B- out of the retainers -2-.

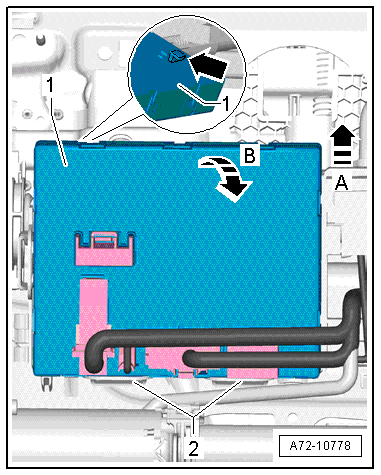

Fig 2: Control Module -1- Out Of The Tabs -2-

Courtesy of AUDI OF AMERICA, LLC

-- Slide the control module in the -direction of arrow A-.

-- Disengage the tabs -arrow- from the control module bracket.

-- Remove the control module from the bracket.
