Special Tools

WARNING: This page is about a different car, the 2012 Audi Q5, 2011 Audi Q5, 2010 Audi Q5, and 2009 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Pressure Gauge K-Jetronic VAS1318

Fig 1: Fuel Inj. Pressure Gauge-CIS K-Jetronic VAS1318 With Adapters VAS1318/11, VAS1318/17 And VAS1318/23
Courtesy of AUDI OF AMERICA, LLC
Pressure Gauge Adapter VAS1318/10-12
Connector Test Set VAS1594C
Remote Control VAS1348/3A with Adapter Cable VAS1348/3-3

Fig 2: Remote Control VAS1348/3A With Adapter Cable VAS1348/3-3
Courtesy of AUDI OF AMERICA, LLC
Hand Vacuum Pump VAS6213

Fig 3: Hand Vacuum Pump VAS6213
Courtesy of AUDI OF AMERICA, LLC
Adapter Cable - VAS1598/39-1-
Adapter Cable - VAS1598/39-2-
Test Box - VAS1598/42-

Fig 4: Adapter Cable VAS1598/39 & Test Box VAS1598/42
Courtesy of AUDI OF AMERICA, LLC
Ring Spanner Insert VAS1331/2

Fig 5: Ring Spanner Insert VAS1331/2 With Torque Wrench 5-50 Nm VAS1331
Courtesy of AUDI OF AMERICA, LLC
Torque Wrench 5-50 Nm VAS1331

Fig 6: Torque Wrench (5 To 50 Nm) VAS1331
Courtesy of AUDI OF AMERICA, LLC
Ratchet, Reversible VAS1331/1

Fig 7: Ratchet, Reversible VAS1331/1
Courtesy of AUDI OF AMERICA, LLC

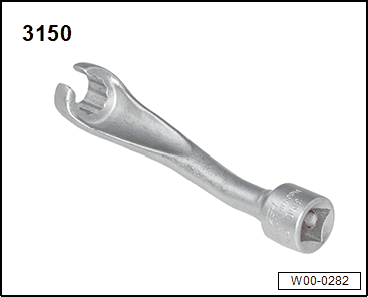

Socket 14 mm 3150

Fig 8: Socket 14 mm 3150
Courtesy of AUDI OF AMERICA, LLC
Tool set T10133

Fig 9: Impact Puller T10133/3 From Tool Set T10133
Courtesy of AUDI OF AMERICA, LLC
Ring Spanner 7-Piece Set 3337

Fig 10: Ring Spanner 7-Piece Set 3337
Courtesy of AUDI OF AMERICA, LLC
Heat Gun 220 V/50 Hz VAS1978/14 -1- with nozzle attachment -2- from Wiring Harness Repair Kit VAS1978

Fig 11: Heat Gun, Adapter Nozzle And Pliers
Courtesy of AUDI OF AMERICA, LLC
Small, commercially available locking pliers -3- (vise grips)
