Lower Intake Manifold With Fuel Rail: Installing

WARNING: This page is about a different car, the 2012 Audi Q5, 2011 Audi Q5, 2010 Audi Q5, and 2009 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in reverse order of removal, note the following:

NOTE:

Replace seals and O-rings.

Lubricate the fuel injector O-rings lightly with clean engine oil.

-- Press lower section of the intake manifold with the fuel rail evenly onto the fuel injectors.

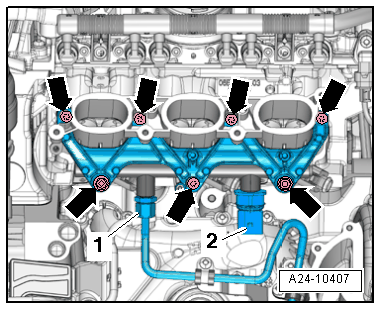

-- Tighten bolts and nut -arrows- on the lower section of the intake manifold diagonally in stages.

Fig 1: Disconnecting Fuel Injector Connectors

Courtesy of AUDI OF AMERICA, LLC

Tightening specification. Refer to LOWER INTAKE MANIFOLD WITH FUEL RAIL OVERVIEW .

-- Disconnect electrical connector -2- on the fuel pressure sensor -G247-.

-- Install high pressure line -1- on the fuel rail. Refer to HIGH PRESSURE LINES .

Fig 2: Fastening High-Pressure Line At Fuel Rail Using Torque Wrench VAS1331 With Open End Wrench Socket VAS1331/2

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Check fuel system for leaks.
