Radio Frequency Controlled Clock Receiver, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

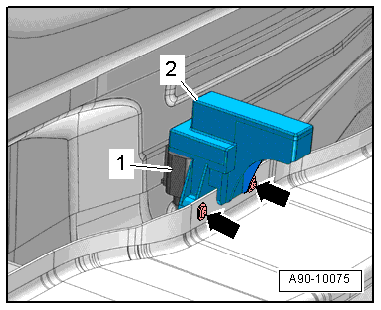

Fig 1: Radio Frequency Controlled Clock Receiver -J489-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the bolts -arrows- and the Radio Frequency Controlled Clock Receiver -J489- -item 2-.

-- Disconnect the connector -1- on the Radio Frequency Controlled Clock Receiver -J489-.
