Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, MMI, FROM 11/03/2008: Notes
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

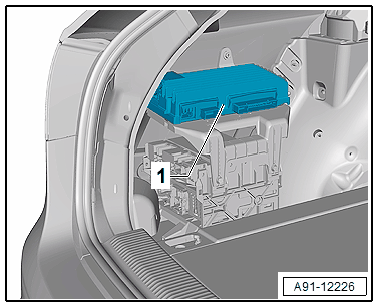

The Digital Sound System Control Module -J525- -1- is located behind the left luggage compartment side trim panel on the top of the Infotainment rack.
Special tools and workshop equipment required
- Fiber-Optic Repair Set - Connector Protective Caps VAS6223/9.
NOTE:
If replacing the control module, select the "Replace Control Module " function see Vehicle Diagnostic Tester.
-- Turn off the ignition and all electrical consumers and remove the ignition key.
