Navigation System Overview, Through 10/31/2008

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

The optical MOST bus links the navigation system into the MMI Infotainment.

The navigation system is available from equipment version "MMI basic plus Navigation".

With the "MMI basic plus Navigation" version, the Navigation System with CD Drive Control Module -J401- is located in the glove compartment and contains the Radio -R- and the Front Information Display Control Head Control Module -J523-.

In the "MMI" version, the Navigation System with CD Drive Control Module -J401- is located in the left rear of the luggage compartment.

All versions are operated via the Multimedia Control Head -E380-.

MMI Basic Plus Navigation

Fig 1: Identifying MMI Navigation
GWWA91-10988Courtesy of AUDI OF AMERICA, LLC
  1. Instrument Cluster Control Module -J285- in the Instrument Panel
  2. Steering Column Electronics Control Module -J527- on Steering Column at Steering Column Switch
  3. Multifunction Steering Wheel
  4. Front Information Display Control Head -J685- in Center of the Instrument Panel
  5. Multimedia System Control Head -E380- in the Front of the Center Console
  6. Radio/Telephone/Navigation System Antenna -R52-
  7. Window Antennas
  8. Antenna Amplifier 3 -R112- Behind the Luggage Compartment Side Trim Panel
  9. Navigation System with CD Drive Control Module -J401- in the Left Side of the Glove Compartment
    • Contains the Front Information Display Control Head Control Module -J523- /Radio -R- /CD-Player -R89-
  10. Data Bus On Board Diagnostic Interface -J533- Behind the Glove Compartment On the Left Side
  11. Digital Sound System Control Module -J525- Behind the Luggage Compartment Left Side Trim
  12. Sound Systems
  13. Microphone Unit in Front Roof Module -R164- in the Front Interior Lamp -W1-

MMI

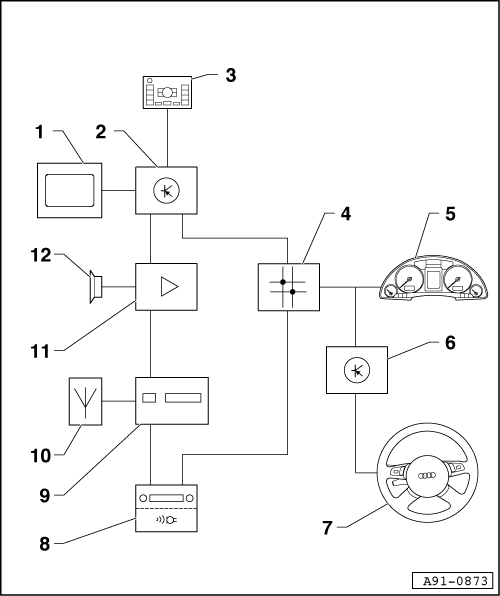

Fig 2: Identifying Navigation System- MMI, Layout
GWWA91-0873Courtesy of AUDI OF AMERICA, LLC
  1. Front Information Display Control Head -J685- in Center of the Instrument Panel
  2. Front Information Display Control Head Control Module -J523-, Behind the Instrument Panel
  3. Multimedia System Control Head -E380- in the Front of the Center Console
  4. Data Bus On Board Diagnostic Interface -J533- Behind the Glove Compartment On the Left Side
  5. Instrument Cluster Control Module -J285- in the Instrument Panel
  6. Steering Column Electronics Control Module -J527- on Steering Column at Steering Column Switch
  7. Multifunction Steering Wheel
  8. Radio -R- with Speech Input Control Module -J507- Behind Left Luggage Compartment Side Trim Panel
  9. Navigation System with CD Drive Control Module -J401- Behind Luggage Compartment Left Side Trim
  10. Radio/Telephone/Navigation System Antenna -R52-
  11. Digital Sound System Control Module -J525- Behind he Luggage Compartment Left Side Trim
  12. Sound Systems

Fault finding is performed via "Guided Fault Finding  " see Vehicle Diagnostic Tester.
