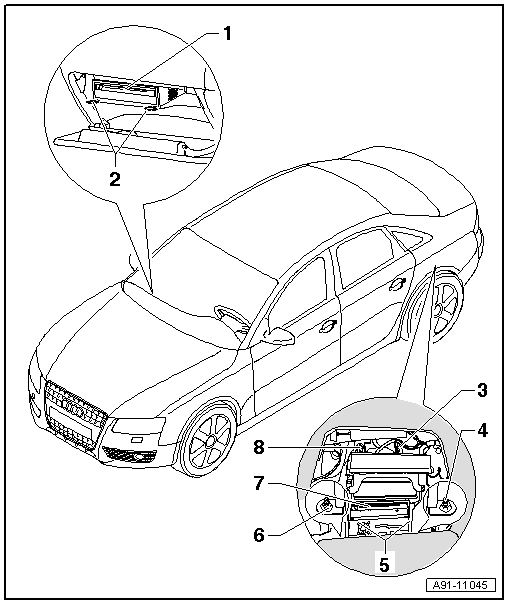

Navigation System Component Location Overview, Through 11/03/2008
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Navigation System with CD Drive Control Module -J401-, MMI Basic Plus Navigation
- Connector assignment, Navigation Basic Plus, refer to CONNECTOR ASSIGNMENT, NAVIGATION BASIC PLUS .
- removing and installing (basic plus), refer to Navigation System with CD Drive Control Module -J401-, REMOVING AND INSTALLING. BASIC PLUS .
- Radio Removal Tool T10057
- Nut
- 5 Nm
- Nut
- 5 Nm
- Radio Removal Tool T10057
- Nut
- 5 Nm
- Navigation System with CD Drive Control Module -J401-, MMI
- Connector Assignment (MMI through 10/31/2008), refer to NAVIGATION SYSTEM CONNECTOR ASSIGNMENT, MMI, THROUGH 11/03/2008 .
- Removing and installing (MMI through 10.31.2008), refer to Navigation System with CD Drive Control Module -J401-, REMOVING AND INSTALLING, MMI, THROUGH 11/03/2008 .
- Nut
- 5 Nm
