Navigation System Component Location Overview, Japan, Through 10/31/2008

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

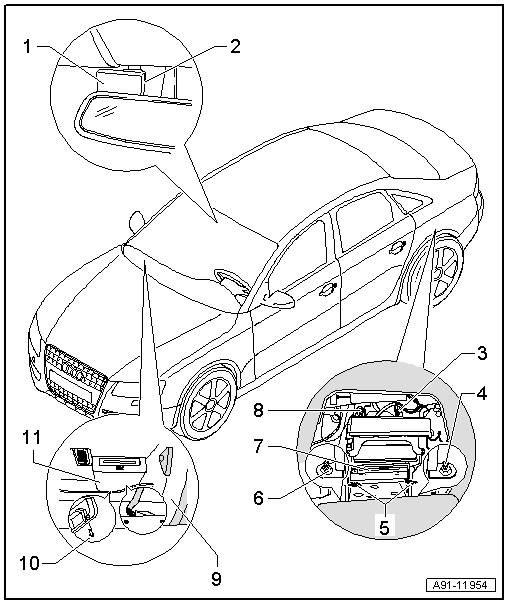

Fig 1: Navigation System Component Location Overview, Japan (Through 10/31/2008)

Courtesy of AUDI OF AMERICA, LLC

Traffic Data Antenna -R173-
- Removing and installing, refer to TRAFFIC DATA ANTENNA, REMOVING AND INSTALLING
Pin
Nut
- 5 Nm
Nut
- 5 Nm
Radio Removal Tool T10057
Nut
- 5 Nm
Navigation System with CD Drive Control Module -J401-
- Connector Assignment (MMI through 10/31/2008), refer to NAVIGATION SYSTEM CONNECTOR ASSIGNMENT, MMI, JAPAN THROUGH 10/31/2008 .
- Removing and installing (MMI through 10.31.2008), refer to Navigation System with CD Drive Control Module -J401-, REMOVING AND INSTALLING, MMI, THROUGH 11/03/2008 .
Nut
- 5 Nm
Glove compartment
Pin
Chip Card Reader Control Module -J676-
- Connector assignment (through 11/03/2008), refer to Chip Card Reader Control Module -J676- CONNECTOR ASSIGNMENTS, JAPAN THROUGH 11/03/2008 .
- Removing and installing, refer to CHIP CARD READER CONTROL MODULE, REMOVING AND INSTALLING
