Navigation System Component Location Overview, Japan From 11/03/2008

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

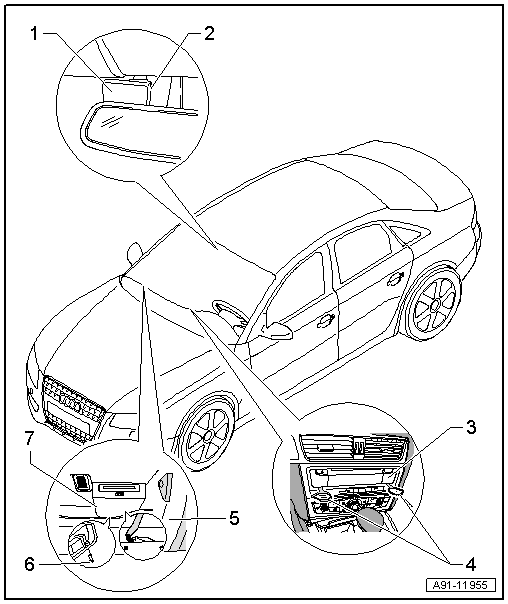

Fig 1: Navigation System Component Location Overview, Japan (From 11/03/2008)

Courtesy of AUDI OF AMERICA, LLC

Traffic Data Antenna -R173-
- Removing and installing, refer to TRAFFIC DATA ANTENNA, REMOVING AND INSTALLING
Pin
Information Electronics Control Module 1 -J794-
- Connector assignment (MMI from 11/03/2008), refer to NAVIGATION SYSTEM CONNECTOR ASSIGNMENT, MMI, JAPAN FROM 11/03/2008 .
- Removing and installing, refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING
Radio Removal Tool T10057
Glove compartment
Pin
Chip Card Reader Control Module -J676-
- Connector assignment, from 11/03/2008, refer to Chip Card Reader Control Module -J676- CONNECTOR ASSIGNMENTS, JAPAN, FROM11/03/2008 .
- Removing and installing, refer to CHIP CARD READER CONTROL MODULE, REMOVING AND INSTALLING
