Infotainment Component Location Overview, Basic/Basic Plus Navigation
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

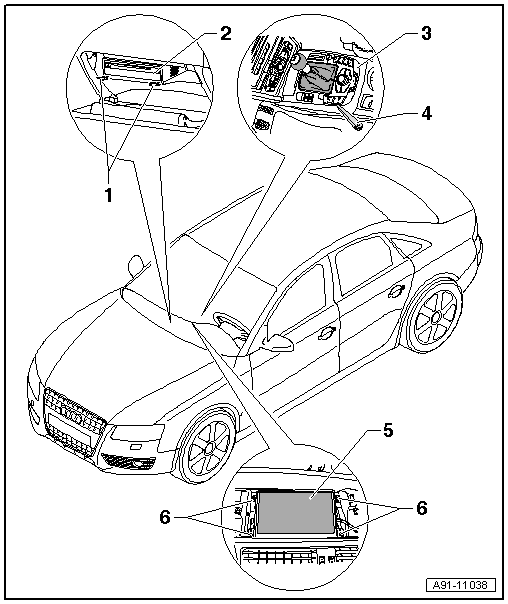

- Radio Removal Tool T10057
- Front Information Display Control Head Control Module -J523-
- Connector assignment, refer to PIN ASSIGNMENT MMI BASIC PLUS .
- Removing and installing, refer to Front Information Display Control Head Control Module -J523-, REMOVING AND INSTALLING, MMI BASIC
- Multimedia System Control Head -E380-
- Connector assignment, refer to Multimedia System Control Head -E380- CONNECTOR ASSIGNMENT .
- Removing and installing, refer to Multimedia System Control Head -E380-, REMOVING AND INSTALLING .
- Trim Removal Wedge 3409
- Front Information Display Control Head -J685-
- Connector assignments (MMI basic), refer to CONNECTOR ASSIGNMENT DISPLAY, MMI BASIC .
- Removing and installing, refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING
- Screw
- 2 Nm
- Quantity: 4
