External Audio Source Connection -R199-, REMOVING AND INSTALLING, INTERFACE: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

The wires for the interface are components of the wiring harness. They cannot be replaced separately. If faulty, the adapter cable must be installed .

-- Open the glove compartment.

-- Unclip the trim -1- using the Trim Removal Wedge VAS3409.

Fig 1: External Audio Source Connection (Interface) Is Located Inside Glove Compartment

Courtesy of AUDI OF AMERICA, LLC

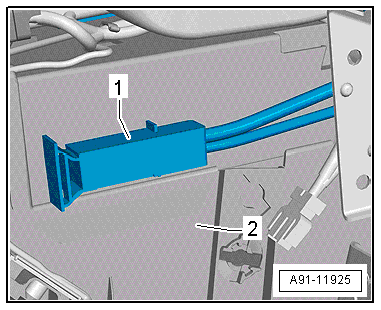

The interface (30-Pin Connector -T30b-) -1- is clipped in the glove compartment -2- from the rear.

Fig 2: Identifying Interface (T30B) (Installed From Behind In Glove Compartment)

Courtesy of AUDI OF AMERICA, LLC

The 4-Pin Connector -T4ap- -1- and 12-Pin Connector -T12y- -2- are located on the Information Electronics Control Module 1 -J794-

Fig 3: Connectors From Interface Are Found On Information Electronics Control Module

Courtesy of AUDI OF AMERICA, LLC
