External Audio Source Connection -R199-, REMOVING AND INSTALLING, AUX IN: Notes

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

The External Audio Source Connection -R199- (AUX IN) -1- is located in the center console storage compartment.

-- Turn off the ignition and all electrical consumers and remove the ignition key.

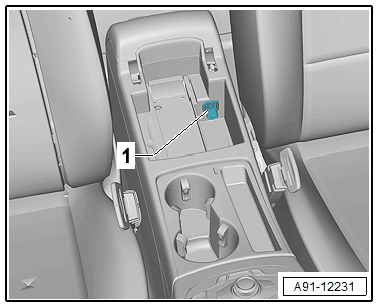

Fig 1: Locating External Audio Source Connection (AUX IN)

Courtesy of AUDI OF AMERICA, LLC
