External Audio Source Connection -R199-, REMOVING AND INSTALLING, AMI: Notes
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

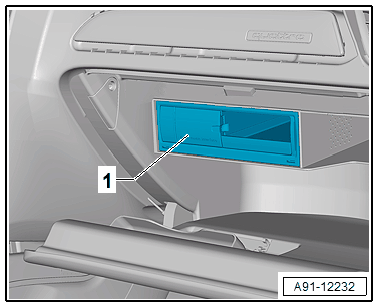

The External Audio Source Connection -R199- (AMI) -1- is located inside the glove compartment.
Special tools and workshop equipment required
- Radio Removal Tool T10057
- Fiber Optic Repair Set VAS6223B
- Fiber-Optic Repair Set - Connector Protective Caps VAS6223/9.
-- Turn off the ignition and all electrical consumers and remove the ignition key.
