Windshield Washer Fluid Level Sensor, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

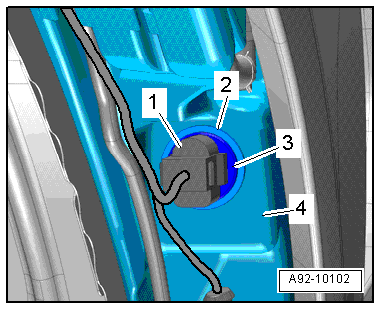

Fig 1: Identifying Washer Fluid Level Sensor

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Remove left front wheel.

-- Remove the left front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Disconnect the connector -1-.

-- Place a drip tray under the windshield washer fluid reservoir.

-- Remove the Windshield Washer Fluid Level Sensor -G33- -item 3- from the washer fluid reservoir -4-.
