Overview - Windshield Washer System: Overview
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Observe notes on contact corrosion. Refer to CONTACT CORROSION .

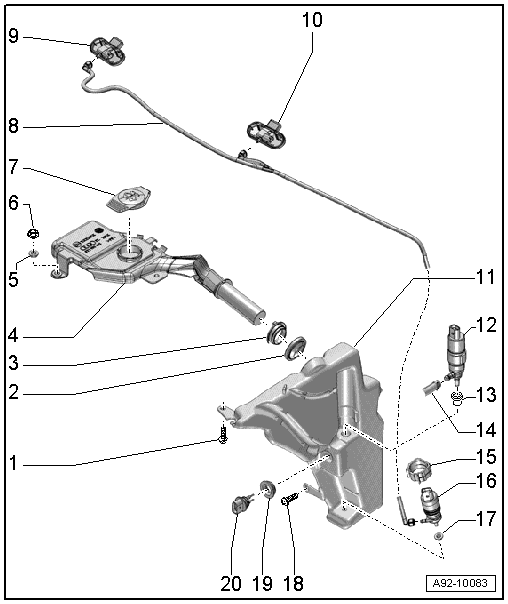

- Screw
- Tightening sequence. Refer to Fig 2
- O-Ring
- Replace if damaged.
- Grommet
- Replace if damaged.
- Filler Tube
- For the windshield washer fluid reservoir
- Removing and installing. Refer to WASHER FLUID RESERVOIR FILLER TUBE, REMOVING AND INSTALLING .
- Support Ring
- Nut
- Threaded connection shared with tower brace
- Cap
- For the filler neck
- Windshield Washer Fluid Hose
- For the windshield washer system
- Right Spray Nozzle
- Depending on vehicle equipment with Right Washer Nozzle Heater -Z21-
- Removing and installing. Refer to SPRAY NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to SPRAY NOZZLES, ADJUSTING .
- Left Spray Nozzle
- Depending on vehicle equipment with Left Washer Nozzle Heater -Z20-
- Removing and installing. Refer to SPRAY NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to SPRAY NOZZLES, ADJUSTING .
- Windshield Washer Fluid Reservoir
- Removing and installing. Refer to WINDSHIELD WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
- Headlamp Washer Pump -V11-
- Grommet
- Windshield Washer Fluid Hose
- For the headlamp washer system
- Retaining Ring
- For Windshield Washer Pump -V5-
- Windshield Washer Pump -V5-
- Removing and installing. Refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING .
- Grommet
- Screw
- Tightening sequence. Refer to Fig 2
- Grommet
- Windshield Washer Fluid Level Sensor -G33-
- Removing and installing. Refer to WINDSHIELD WASHER FLUID LEVEL SENSOR, REMOVING AND INSTALLING .

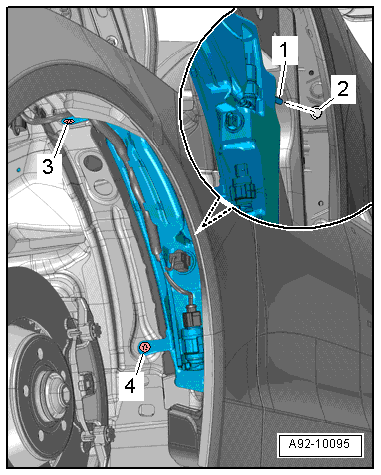

-- Tighten the washer fluid bolts in the sequence specified:
-- Tighten the bolt -3- to 7 Nm.
-- Tighten the bolt -4- to 7 Nm.
