Engine, Securing On Engine And Transmission Holder

WARNING: This page is about a different car, the 2012 Audi A8 and 2011 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Lifting Tackle3033
Engine And Transmission HolderVAS6095 with Engine/Transmission Holder - V8 Engine Bracket VAS6095/1-6A
Shop CraneVAS6100
Lift Arm ExtensionVAS6101
Hose Clip PliersVAS6362

Procedure

Fig 1: Disconnecting Connector -1

Courtesy of AUDI OF AMERICA, LLC

Engine/transmission subassembly removed; engine and transmission separated, refer to ENGINE AND TRANSMISSION, SEPARATING .
Engine secured with Joint SupportVAS6131/13-7.

-- Disconnect the connector -1-.

NOTE:

Place a cloth underneath to catch the draining hydraulic fluid.

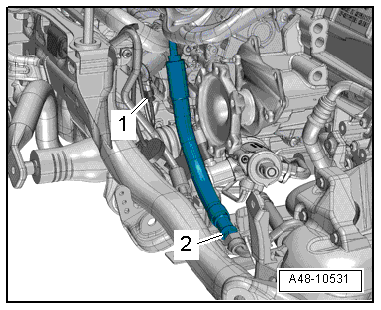

-- Disconnect the power steering hydraulic pipe -2-.

-- Remove the bolts -1 and 2-.

Fig 2: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wire on the left coolant pipe in the center.

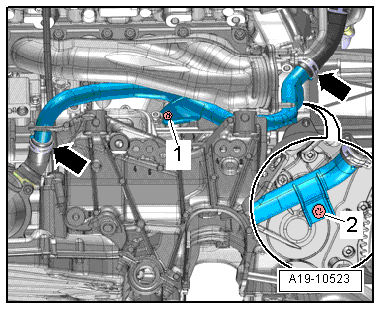

Fig 3: Disconnecting Upper Coolant Hose From Engine

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the clamps -arrows-, remove the bolts -1 and 2- and remove the left coolant pipe in the center from the coolant hoses.

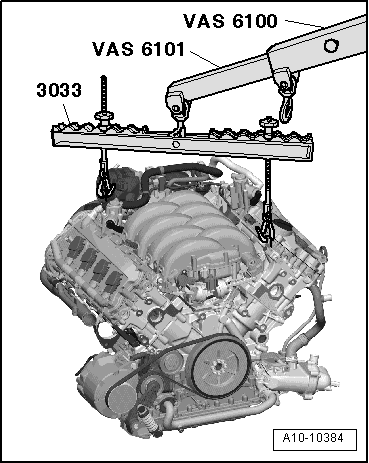

-- Engage the Lifting Tackle3033 on the engine lifting eyes and on the shop crane as shown in the illustration.

Fig 4: Engaging Lifting Tackle 3033 On Engine Lifting Eyes And On Shop Crane VAS 6100 With Lift Arm Ext./Workshop Hoist VAS 6101

Courtesy of AUDI OF AMERICA, LLC

-- Tension engine slightly with shop crane, do not raise.

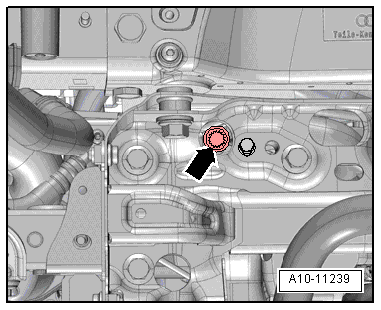

-- Remove the bolt -arrow- from the left engine mount.

Fig 5: Identifying Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove the right engine mount bolt -1-.

Fig 6: Identifying Connector

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore item -2-.

-- Remove the Joint SupportVAS6131/13-7 from the engine.

Fig 7: Identifying VAS 6131/13-7

Courtesy of AUDI OF AMERICA, LLC

-- Raise engine from engine carrier.

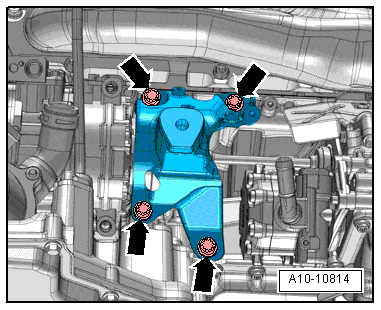

-- Remove the bolts -arrows- and remove the left engine support.

Fig 8: Identifying Bolts And Left Engine Support

Courtesy of AUDI OF AMERICA, LLC

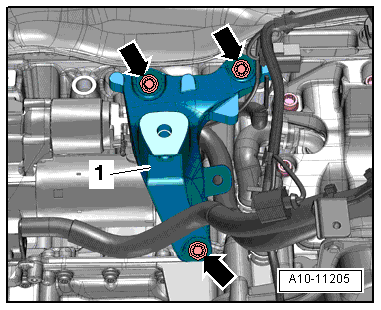

-- Remove the bolts -arrows- and remove the right engine support -1-.

Fig 9: Identifying Right Engine Support

Courtesy of AUDI OF AMERICA, LLC

-- Secure the starter on the engine.

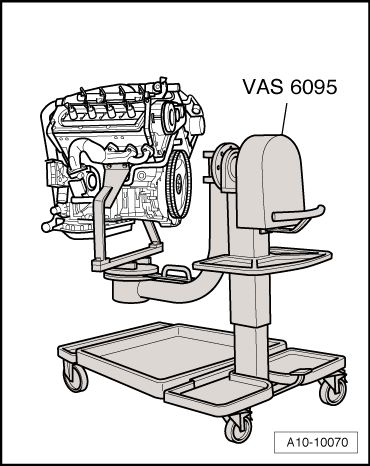

-- Attach the engine using the Engine/Transmission Holder - V8 Engine Bracket VAS6095/1-6A to the Engine And Transmission HolderVAS6095 to 55 Nm, as shown in the illustration.

Fig 10: Identifying Engine, Holder VAS 6095 And Bracket For V6 FSI Engine VAS 6095/1-5

Courtesy of AUDI OF AMERICA, LLC
