Cooling System, Checking For Coolant Leaks: Notes
WARNING: This page is about a different car, the 2012 Audi A8 and 2011 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Cooling System TesterVAG1274B
- Cooling System Tester - AdapterVAG1274/8
- Cooling System Tester - AdapterVAG1274/9
Procedure
- Engine at operating temperature.
WARNING:
Risk of scalding due to hot steam and hot coolant.
- The coolant system is under pressure when the engine is warm.
- Reduce pressure by covering coolant reservoir cap with a cloth and carefully opening.
-- Open the coolant reservoir cap.

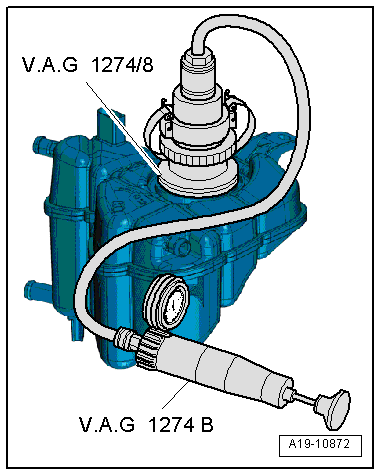

-- Position the Cooling System TesterVAG1274B with the Cooling System Tester - AdapterVAG1274/8 on the coolant reservoir.
-- Generate approximately 1.0 bar (14.5 psi) pressure using the cooling system tester hand pump.
-- If pressure falls, search for leaks and correct problem.
