Windshield Wiper Arms, Adjusting: Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Audi S8, 2015 Audi A8 Quattro, 2014 Audi S8, 2014 Audi A8 Quattro, and 2013 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If the windshield wiper motor is to be run during the work procedure, the hood must be closed. Otherwise, the voltage supply of the wiper motor will be interrupted.

-- Remove the windshield wiper arms, refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .

-- Turn on the ignition.

-- Activate "one-tap wiping" and let the wiper motor run into its end position.

NOTE:

Every second time the wiper motor is switched off, it returns the wiper arms to a slightly lower rest position, thus tipping the wiper blade lips the other way.

To do so, the windshield wiper motor moves the wiper arms farther down than to rest position and then a bit up again. This lower rest position must not be used to adjust the wiper crank.

Only use end position where wiper arms run directly into the end position with no understroke. Activate "One-touch wiping" again if necessary.

-- Turn off the ignition.

-- Position the wiper arm with wiper blade installed at the wiper axle.

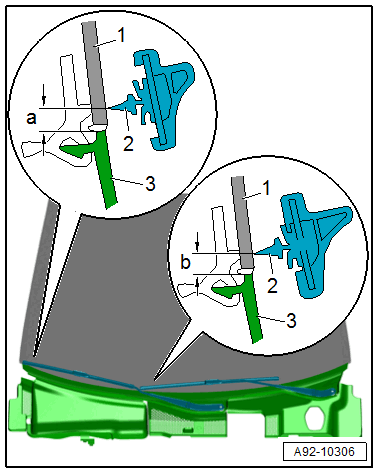

-- Align the wiper blade tip -2- on the lower edge of the windshield -1- to the cowl panel trim -3- as follows:

Fig 1: Identifying Dimensions

Courtesy of AUDI OF AMERICA, LLC

Dimension -a- = 25 + 10 mm.
Dimension -b- = 21 + 10 mm.

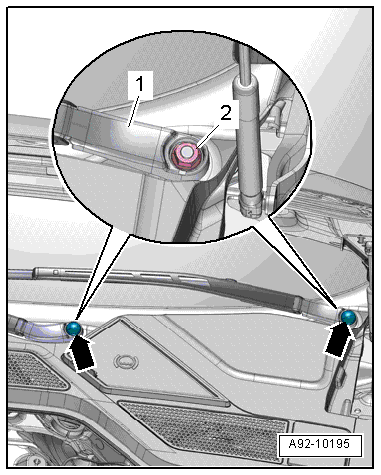

-- Tighten the nuts -2- on the windshield wiper arms -1-.

Fig 2: Identifying Windshield Wiper Arm Nut

Courtesy of AUDI OF AMERICA, LLC

-- Turn on the ignition.

-- Activate "one-tap wiping" and let the windshield wiper arms run into their end position.

-- Turn off the ignition.

-- Check the position of the wiper arms one more time and adjust if necessary.

-- Press the caps -arrows- onto the wiper arms.
