Subframe Mount Overview

WARNING: This page is about a different car, the 2014 Audi A8 Quattro and 2013 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.

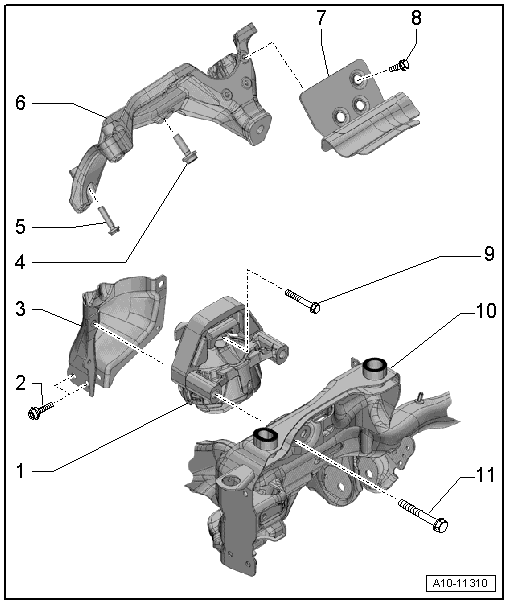

Fig 1: Identifying Engine Mount Overview
GWWA10-11310Courtesy of AUDI OF AMERICA, LLC
  1. Engine Mount
    • Left with the Left Electrohydraulic Engine Mount Solenoid Valve -N144-
    • Right with the Right Electrohydraulic Engine Mount Solenoid Valve -N145-
    • Removing and installing, refer to ENGINE MOUNT, REMOVING AND INSTALLING
    • Replace in pairs
  2. Bolt
    • 20 Nm
  3. Retaining Plate
    • For the engine mount
    • If the engine mount is faulty, replace the retaining plate
    • Check the retaining plate on the opposite side; replace if necessary
  4. Bolt
    • 40 Nm
  5. Bolt
    • 20 Nm
  6. Engine Support
    • The left version from 07/2010 with the Air Conditioning (A/C) compressor bracket is illustrated
  7. Heat Shield
  8. Bolt
    • 10 Nm
  9. Bolt
    • 90 Nm + an additional 90° turn
    • Replace
  10. Subframe
  11. Bolt
    • 55 Nm

-- Tighten the nut -2- for the hydraulic hose bracket -1- to 9 Nm.

Fig 2: Identifying Hydraulic Oil Hose Bracket -1- & Nut -2-
GWWA10-11104Courtesy of AUDI OF AMERICA, LLC

Transmission Mount

Fig 3: Identifying Automatic Transmission Mount Overview
GWWA37-11052Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
  2. Tunnel Crossmember
  3. Stop
    • for the transmission mount
  4. Transmission Mount
  5. Bolt
  6. Nut
  7. Bolt
  8. Gearbox Support
  9. Bolt
  10. Nut
