Engine Mount, Removing And Installing: Removing

Fig 1: Identifying Front Wheel Housing Liner

Courtesy of AUDI OF AMERICA, LLC

-- Support the engine in its installed position, refer to ENGINE, SUPPORTING IN INSTALLED POSITION .

-- Remove the affected front wheel housing liner completely, refer to Wheel Housing Liner .

Right Engine Mount:

-- Remove the generator, refer to Generator .

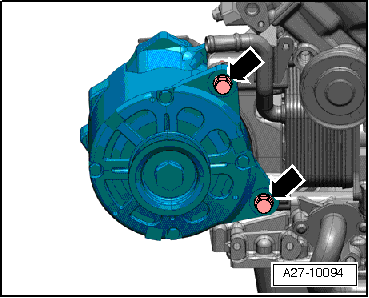

Fig 2: Identifying Bolts For Generator

Courtesy of AUDI OF AMERICA, LLC

Left Engine Mount:

-- Remove the oil cooler, refer to ENGINE OIL COOLER, REMOVING AND INSTALLING .

-- Remove the ribbed belt from the A/C compressor, refer to RIBBED BELT, REMOVING AND INSTALLING, RIBBED BELT FOR AUXILIARY COMPONENTS .

-- Remove the Air Conditioning (A/C) compressor, refer to Air Conditioning (A/C) Compressor .

Fig 3: Identifying Air Conditioning Compressor Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the subframe crossbrace, refer to Subframe .

Fig 4: Identifying Subframe Crossbrace

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left subframe bolt -2-.

NOTE:

The left subframe bolts -1, 3- and all of the right subframe bolts remain installed.

Fig 5: Identifying Subframe Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -1- and free up the hydraulic hose bracket.

Fig 6: Identifying Hydraulic Hose Bracket Nut

Courtesy of AUDI OF AMERICA, LLC

Continued for Both Sides:

-- Disconnect the connector -3- from the Left Electrohydraulic Engine Mount Solenoid Valve -N144- / Right Electrohydraulic Engine Mount Solenoid Valve -N145-.

-- Remove the bolts -2-.

-- Remove the bolts -1 and 2- and move the retaining plate to the side.

Fig 7: Identifying Retaining Plate Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the engine mount.
