Front Peripheral Camera -R243-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Audi S8, 2015 Audi A8 Quattro, 2014 Audi S8, 2014 Audi A8 Quattro, and 2013 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front bumper cover, refer to Front Bumper .
-- Remove the radiator grille from the front bumper cover, refer to Radiator Grille/Front Trim .

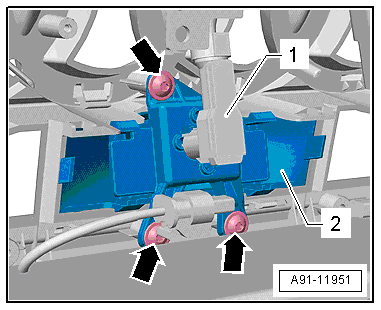

-- Remove the bolts -arrows- on the Front Peripheral Camera -R243- -2-.
-- Remove the Front Peripheral Camera -R243- -2- from the bumper cover and disconnect the connector -1-.
