Component Location Overview - Navigation System
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Audi S8, 2015 Audi A8 Quattro, 2014 Audi S8, 2014 Audi A8 Quattro, and 2013 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

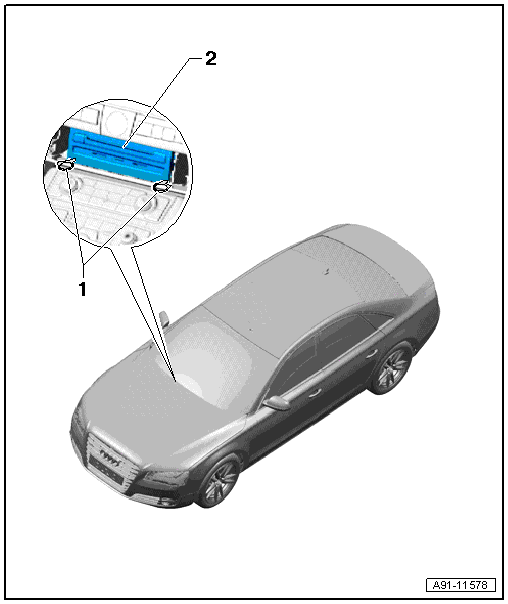

- Radio Removal ToolT10057
- Information Electronics Control Module 1 -J794-
- Connector assignment, refer to Information Electronics Control Module 1 -J794- CONNECTOR ASSIGNMENT .
- Removing and installing, refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING
