Engine, Removing: Procedure

WARNING: This page is about a different car, the 2014 Audi A8 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

With lock carrier installed, engine is removed downward together with the transmission and the subframe.

During installation, cable ties must be installed at the same location.

WARNING:

Risk of vehicle tipping over with engine removed.

Secure vehicle. Luggage compartment must be empty for this.

-- Position the front wheels so they are straight.

Fig 1: Disconnecting Battery

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Danger of causing damage to electronic components.

Complete the steps for disconnecting the battery.

-- Turn off the ignition.

-- Disconnect the battery ground cable -2-, refer to BATTERY, DISCONNECTING AND CONNECTING Battery Safety Label .

Vehicles through MY 2013:

-- Extract the power steering oil from the reservoir with the Used Oil Collection and Extraction Unit SMN 372500.

All Vehicles:

Fig 2: Removing Engine Cover

Courtesy of AUDI OF AMERICA, LLC

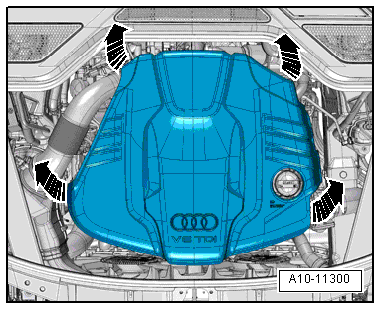

-- Carefully pull the engine cover off the bolts one after the other -arrows-. Do not remove the engine cover on one side or in a jerking manner.

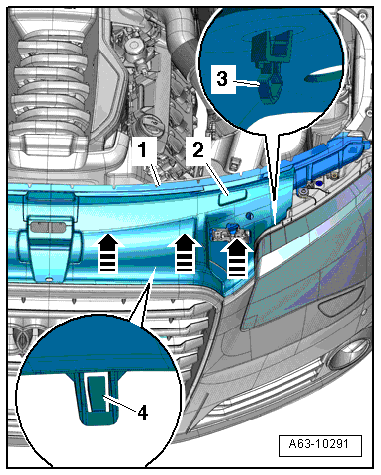

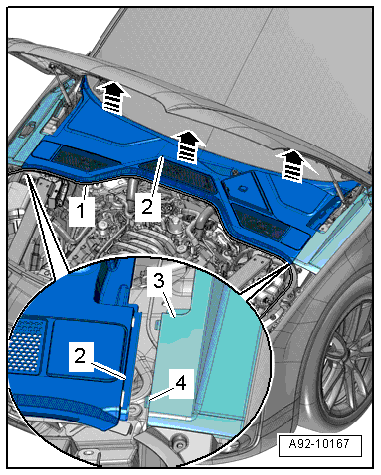

-- Remove the lock carrier cover -2-, refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .

Fig 3: Identifying Bolts And Pull Air Guide Off Air Filter Housing

Courtesy of AUDI OF AMERICA, LLC

Fig 4: Engine At Operating Temperature

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Risk of scalding due to hot steam and hot coolant.

The coolant system is under pressure when the engine is warm.
Cover the coolant reservoir cap with a cloth and then open it slowly to release the pressure.

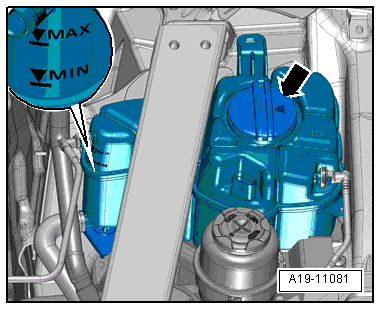

-- Remove the cap -arrow- from the coolant reservoir.

-- Remove the front left and right wheel housing liners completely, refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

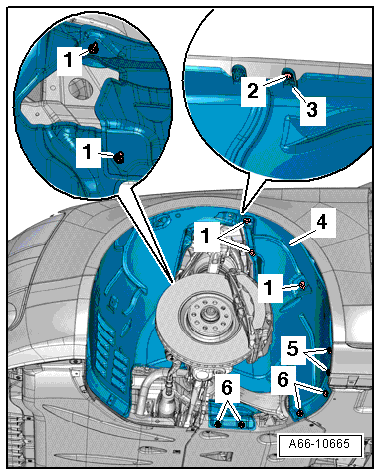

Fig 5: Identifying Front Wheel Housing Liner

Courtesy of AUDI OF AMERICA, LLC

-- Remove the noise insulations -1 and 2-, refer to NOISE INSULATION, REMOVING AND INSTALLING .

Fig 6: Removing Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

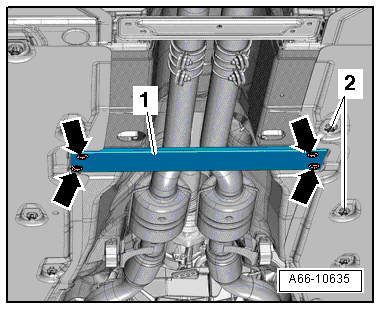

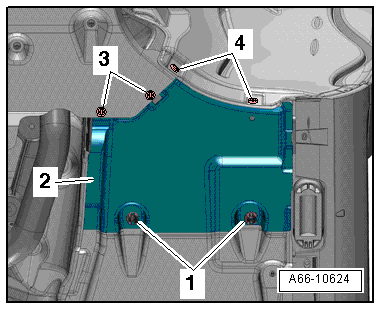

-- Remove the left and right underbody panel -2-, refer to UNDERBODY TRIM PANELS, REMOVING AND INSTALLING .

Fig 7: Left And Right Lower Longitudinal Member

Courtesy of AUDI OF AMERICA, LLC

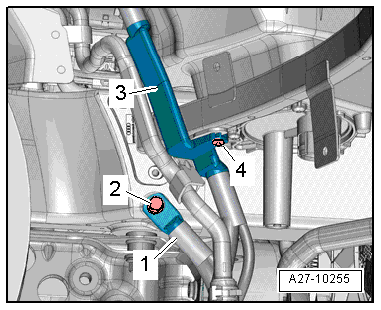

-- Remove the left and right lower longitudinal member, refer to LOCK CARRIER, REMOVING AND INSTALLING .

AWD Vehicles:

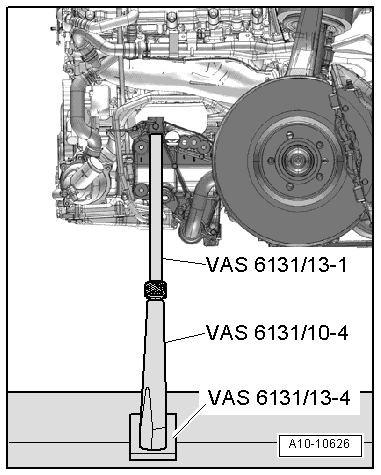

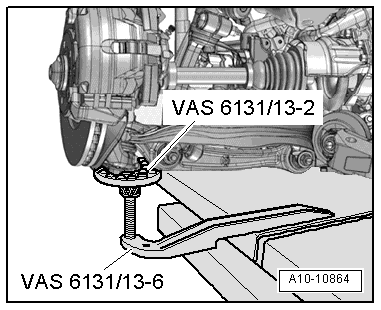

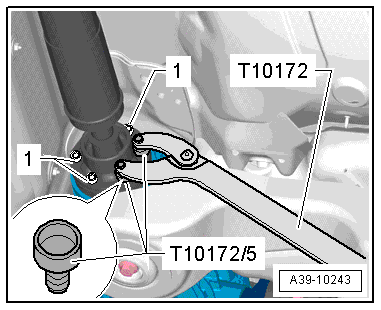

Fig 8: Counter Hold Using Counterhold Tool Touareg V10 T10172 And Adapters T10172/5

Courtesy of AUDI OF AMERICA, LLC

-- Remove the propshaft, refer to REMOVAL AND INSTALLATION or REMOVAL AND INSTALLATION .

Vehicles through MY 2013:

Fig 9: Draining Out Coolant From Hose Clamp

Courtesy of AUDI OF AMERICA, LLC

NOTE: Collect escaping coolant in a clean container for disposal.

-- Remove the coolant hose from the left front coolant pipe by loosening the hose clamp -2- and letting the coolant drain out.

NOTE: Ignore item -1-.

Vehicles from MY 2014:

Fig 10: Coolant Hose From The Left Front Coolant Pipe

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the clamp -arrow-, remove the coolant hose from the left lower coolant pipe and let the coolant drain out.

All Vehicles:

Fig 11: Draining Coolant Out From Right Lower Coolant Hose

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wire for the Engine Coolant Temperature Sensor on Radiator Outlet -G83- -1-.

-- Lift the clamp and let the coolant drain out to remove the right lower coolant hose -2- from the radiator.

-- Remove the right lower coolant hose -arrow- by lifting the clamp and draining the coolant.

Fig 12: Right Coolant Hose From Behind

Courtesy of AUDI OF AMERICA, LLC

Vehicles through MY 2013:

Fig 13: Identifying Suction Hose And Return Hose

Courtesy of AUDI OF AMERICA, LLC

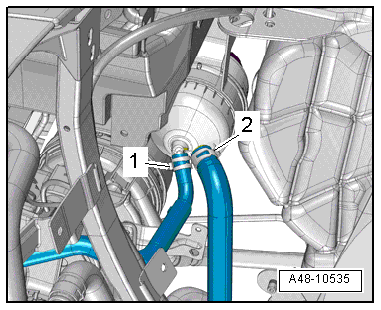

-- Clamp off the hydraulic hoses -1 and 2- from the hydraulic fluid reservoir using the Hose Clamps - Up To 25 mm 3094.

NOTE:

Place a cloth underneath to catch the draining hydraulic fluid.

Fig 14: Identifying Clamp

Courtesy of AUDI OF AMERICA, LLC

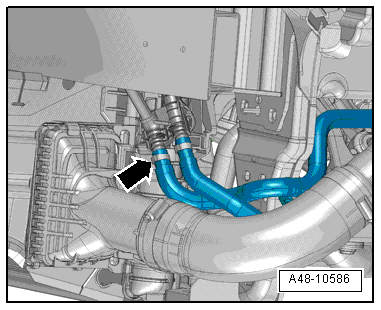

-- Loosen the clamp -arrow- and remove the hydraulic hose.

-- Seal the open lines and connections with clean plugs from the Engine Bung Set VAS 6122.

All Vehicles:

Fig 15: Identifying Air Guide Pipe And Clamp

Courtesy of AUDI OF AMERICA, LLC

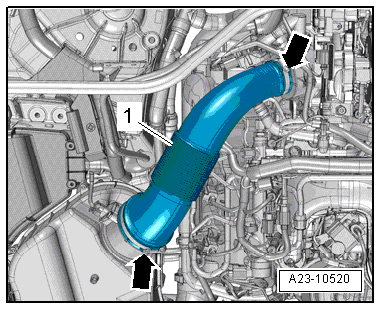

-- Open the clamps -arrows- and remove the air guide pipe -1-.

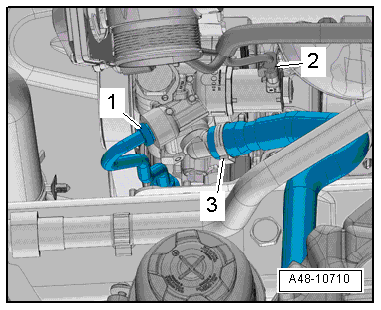

Fig 16: Identifying Hoses

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

There is a risk of contamination.

Follow the guidelines for cleanliness when working on the fuel supply system, refer to CLEAN WORKING CONDITIONS .

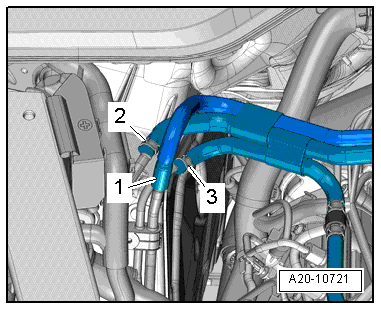

-- Loosen the hose clamps -1, 2 and 3- and mark the fuel hoses for installation later and then remove them.

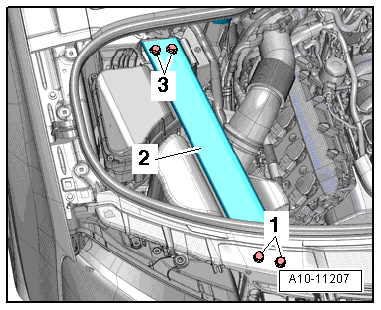

-- Remove the upper right longitudinal member -2-, refer to OVERVIEW - LOCK CARRIER .

Fig 17: Identifying Upper Right Longitudinal Member

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2-.

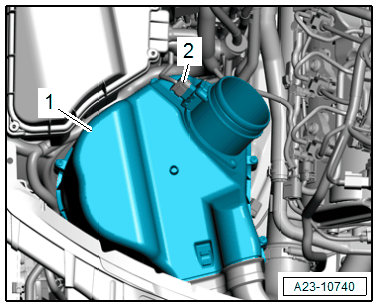

Fig 18: Identifying Air Filter Housing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the air filter housing -1- upward.

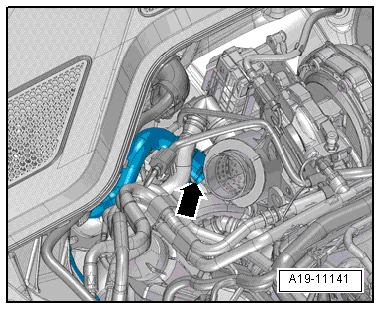

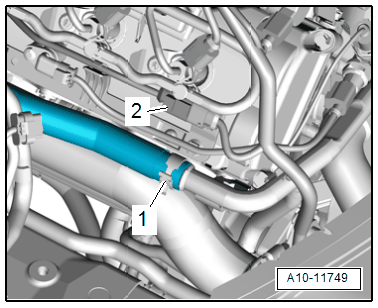

-- Remove the coolant hose -arrow- by lifting the clamp.

Fig 19: Identifying Coolant Hose

Courtesy of AUDI OF AMERICA, LLC

Vehicles from MY 2014:

Fig 20: Identifying Connector And Clamp

Courtesy of AUDI OF AMERICA, LLC

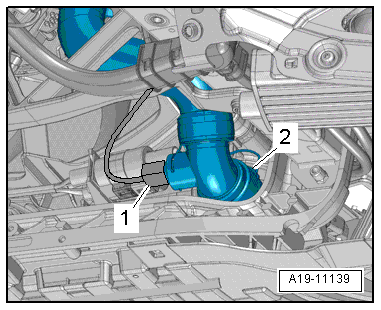

-- Remove the connector -2- from the bracket, disconnect it and free up the wire.

All vehicles:

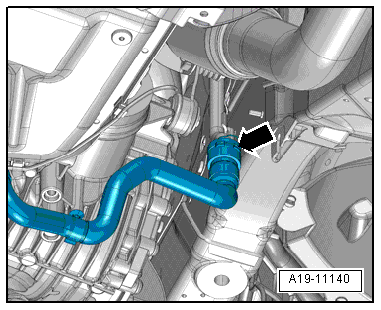

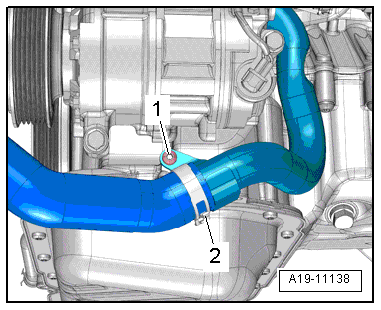

-- Loosen the clamp -arrow- and remove the coolant hose from the coolant pipe.

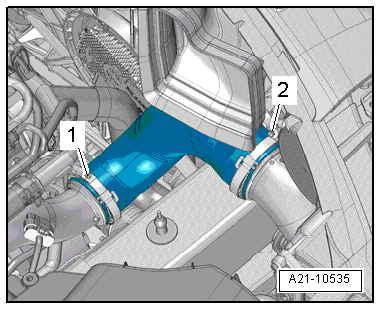

-- Loosen the clamp -1- and remove the air duct tube.

Fig 21: Identifying Clamp

Courtesy of AUDI OF AMERICA, LLC

NOTE: Ignore item -2-.

-- Turn the tensioning element clockwise using the TORX Socket - T60 T40087 -arrow- to release the tension on the ribbed belt.

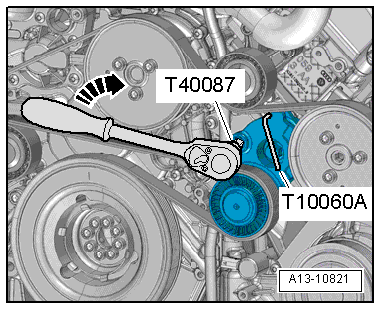

Fig 22: Moving Tensioner Clockwise Using T40087 To Release Tension On Ribbed Belt And To Remove Ribbed Belt Using T10060A

Courtesy of AUDI OF AMERICA, LLC

-- Remove the ribbed belt from the A/C compressor ribbed belt pulley and stop the tensioner with the Locking Pin T10060 A.

NOTE: A vehicle through MY 2013 is shown.

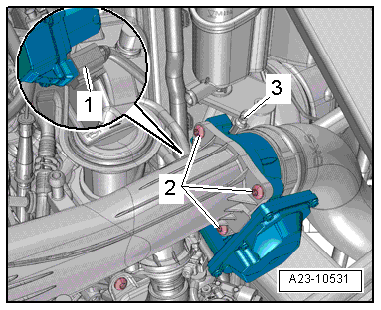

-- Loosen the clamp -3- and remove the air duct tube.

Fig 23: Identifying Connector, Bolts And Air Hose Guide

Courtesy of AUDI OF AMERICA, LLC

Vehicles from MY 2014:

-- Disconnect the connector -1-.

NOTE: Ignore -item 2-.

Vehicles through MY 2013 Without Dynamic Steering:

Fig 24: Identifying Pressure Line Bolt And Intake Hose Clamp

Courtesy of AUDI OF AMERICA, LLC

NOTE: Place a cloth underneath to catch the draining hydraulic fluid.

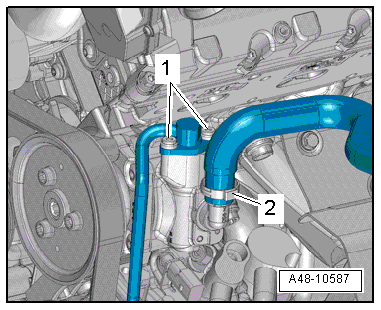

-- Loosen the hose clamp -2- and remove the hydraulic hose.

-- Remove the bolts -1-, pull out the hydraulic line and pivot it downward.

Vehicles through MY 2013 with Dynamic Steering:

Fig 25: Identifying Bolts, Clamp Pressure Line, Clamp Hydraulic Hose

Courtesy of AUDI OF AMERICA, LLC

NOTE: Place a cloth underneath to catch the draining hydraulic fluid.

-- Remove the union nut -1- and then remove the hydraulic line from the power steering pump.

-- Loosen the hose clamp -3- and remove the hydraulic hose.

NOTE: Ignore -item 2-.

All Vehicles:

-- Seal the open lines and connections with clean plugs from the Engine Bung Set VAS 6122.

-- Remove the seal -1- near the plenum chamber cover.

Fig 26: Identifying Seal Near Plenum Chamber Cover

Courtesy of AUDI OF AMERICA, LLC

-- Remove the plenum chamber cover -2-, refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

-- Release the cover -2- and swivel it to the side -arrow-.

Fig 27: Identifying Cover, Positive Cable And Nuts

Courtesy of AUDI OF AMERICA, LLC

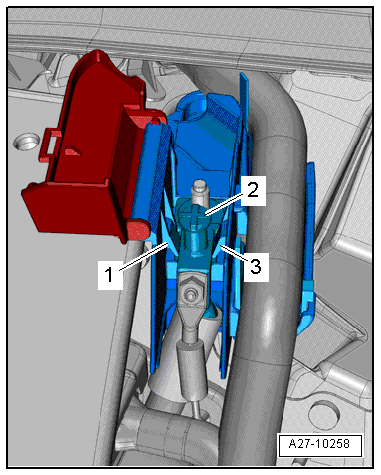

-- Remove the nut -4- and free up the positive cable.

-- Remove the nut -3- and remove the positive cable -1-.

-- Open the tabs -1 and 3- and swivel the positive terminal -2- out of the mount.

Fig 28: Identifying Positive Terminal Grip

Courtesy of AUDI OF AMERICA, LLC

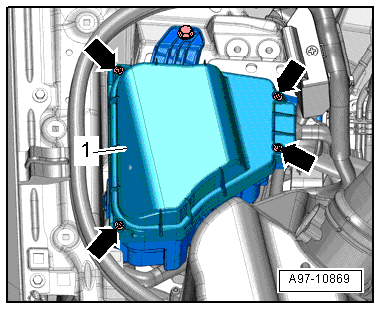

-- Remove the bolts -arrows- and the engine compartment E-box cover -1- at right.

Fig 29: Identifying Engine Compartment E-Box Cover Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors -1 and 2- and free up the wires.

Fig 30: Identifying Engine Compartment E-Box Components

Courtesy of AUDI OF AMERICA, LLC

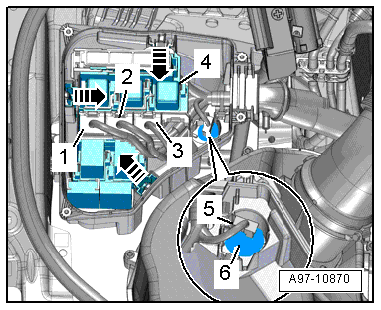

-- Release the retainers -arrows- and remove the relay carrier with the fuse panel -4-.

-- Open the release -5- and remove the condenser -6-.

-- Disengage and free up the engine wiring harness on the engine compartment E-box at right and then lay it on the engine.

NOTE: Ignore item -3-.

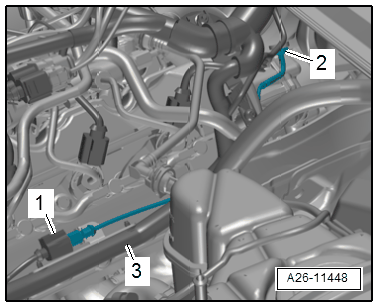

-- Disconnect the vacuum hose -1- leading to the brake booster.

Fig 31: Identifying Coolant Line And Vacuum Line

Courtesy of AUDI OF AMERICA, LLC

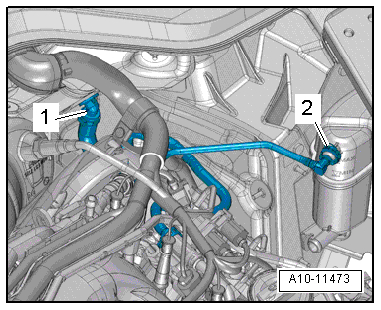

-- Remove the coolant hose -2- by lifting the retaining clip.

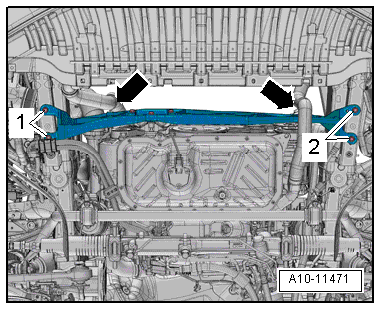

-- Remove the tower brace, refer to TOWER BRACE, REMOVING AND INSTALLING .

Fig 32: Identifying Tower Brace

Courtesy of AUDI OF AMERICA, LLC

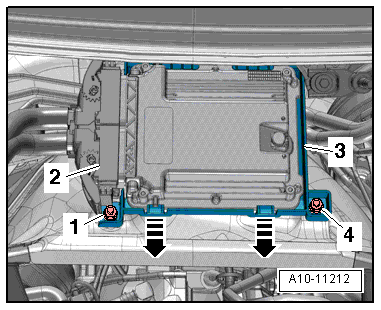

-- Open the clamps -arrows-, remove the Engine Control Module -J623- -2- and lay it on the engine.

Fig 33: Component Location Engine Control Module -J623-

Courtesy of AUDI OF AMERICA, LLC

NOTE: Ignore items -1, 3 and 4-.

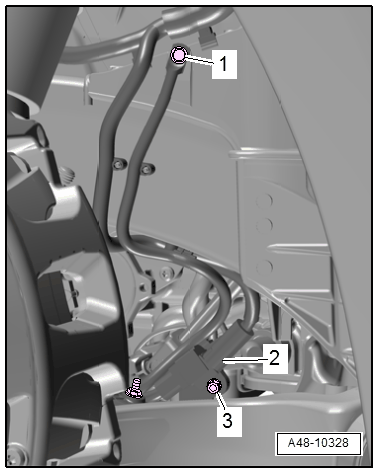

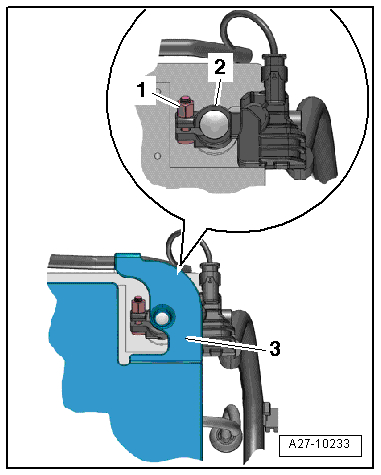

-- Remove the bolt -4- for the battery positive cable -3- and the bolt -2- for the ground cable -1- and free up the cables.

Fig 34: Identifying Battery Positive And Ground Cables And Bolts

Courtesy of AUDI OF AMERICA, LLC

Vehicles with FWD:

Fig 35: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Free up the coolant hoses at the left and right -arrows-.

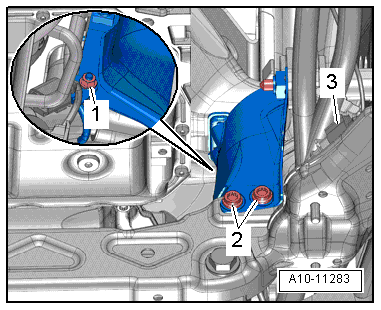

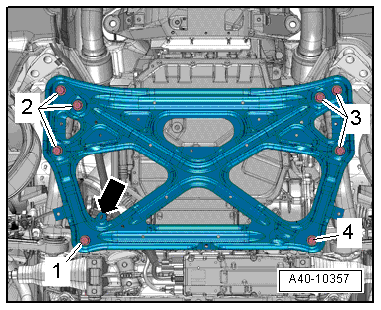

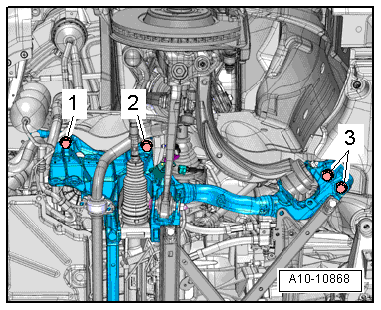

-- Remove the bolts -1 and 2- and then the crossmember for the torque support.

Vehicles with Parking Heater:

Fig 36: Identifying Bolt

Courtesy of AUDI OF AMERICA, LLC

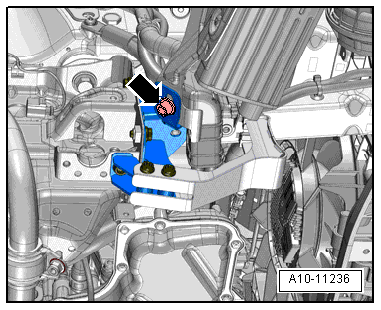

-- Remove the bolt -arrow- from the mount.

All Vehicles:

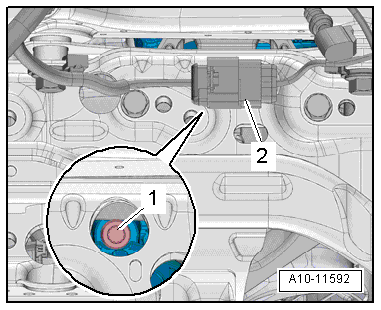

Fig 37: Electrical Connector And Right Engine Mount Bolt

Courtesy of AUDI OF AMERICA, LLC

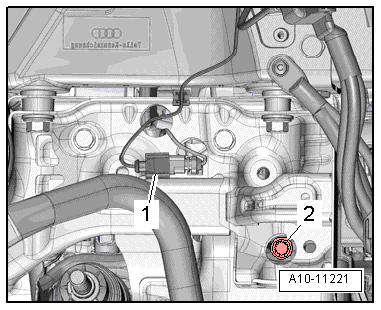

-- Version I of electrohydraulic engine mount solenoid valve only: Free up and disconnect the connector -1- for the Right Electrohydraulic Engine Mount Solenoid Valve -N145-.

NOTE: Ignore -item 2-.

Vehicles from MY 2014:

Fig 38: Disconnect Connector Throttle Valve Control Module -J338- Free Up Wire, Free Up Wiring Harness From Cylinder Head Cover

Courtesy of AUDI OF AMERICA, LLC

-- Remove the connector -1- from the bracket and disconnect it.

-- Free up the wiring harness -3- from the cylinder head cover.

NOTE: Ignore item -2-.

-- Disconnect the connector -1- from the Throttle Valve Control Module -J338- and free up the wire.

Fig 39: Identifying Connector, Bolts And Air Hose Guide

Courtesy of AUDI OF AMERICA, LLC

NOTE: Ignore items -2 and 3-.

-- Disconnect the connector -1- from the Engine Temperature Control Sensor -G694- and free up the wire.

Fig 40: Engine Temperature Control Sensor -G694- Component Location

Courtesy of AUDI OF AMERICA, LLC

NOTE: Ignore item -2-.

-- Version II of electrohydraulic engine mount solenoid valves only: Disconnect the connector -3- from the Left Electrohydraulic Engine Mount Solenoid Valve -N144-.

Fig 41: Installed Location For Electrohydraulic Engine Mount Solenoid Valve

Courtesy of AUDI OF AMERICA, LLC

NOTE: Ignore -items 1 and 2-.

-- Disconnect the connector -1- from the Oil Pressure Regulation Valve -N428- and free up the wire.

Fig 42: Oil Pressure Regulation Valve -N428-

Courtesy of AUDI OF AMERICA, LLC

NOTE: Ignore item -2-.

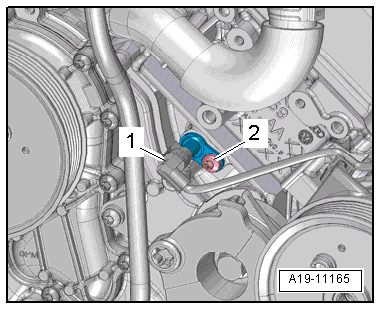

-- Disconnect the connector -2- from the Transmission Coolant Valve -N488-.

Fig 43: Transmission Coolant Valve -N488-

Courtesy of AUDI OF AMERICA, LLC

NOTE: Ignore item -2 and arrows-.

Fig 44: Disconnecting Connector On Transmission By Rotating Screw

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

There is a risk of destroying the transmission control module (Mechatronic) with static discharge.

Do not touch contacts in transmission connector with hands.

-- To discharge static electricity, touch the transmission housing (without wearing gloves).

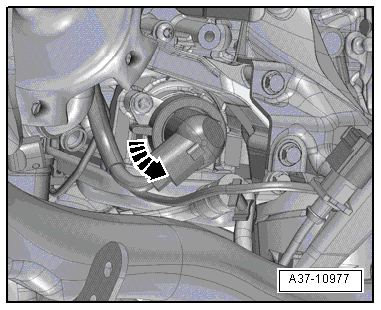

-- Turn the twist lock counter-clockwise -arrow- and disconnect the connector from the transmission.

-- Free up the wiring harness on the transmission.

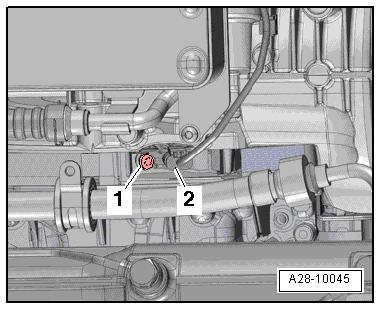

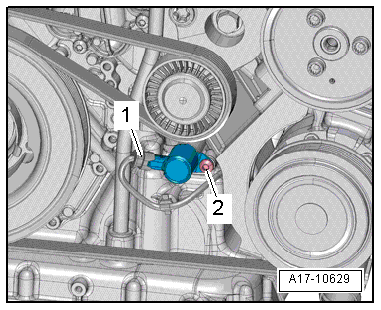

-- Disconnect the connector -2- from the Engine Speed Sensor -G28- and free up the wires on the transmission.

Fig 45: Engine Speed Sensor -G28-

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wiring harness on the transmission.

NOTE: Ignore -item 1-.

All Vehicles:

WARNING:

Refrigerant can cause serious personal injury.

Do not open the air conditioning refrigerant circuit.

-- Remove the connector -1- from the bracket and disconnect it.

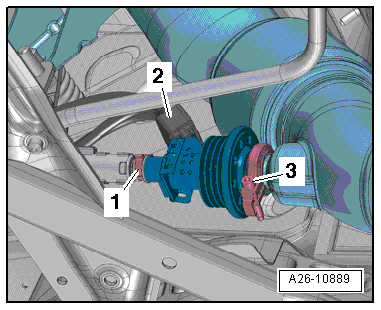

Fig 46: Disconnecting Connector For Wiring To Air Conditioning Compressor Clutch Solenoid

Courtesy of AUDI OF AMERICA, LLC

Vehicles from MY 2014:

-- Free up the wiring harness and place it on the A/C compressor.

All Vehicles:

CAUTION:

Risk of damaging refrigerant lines and hoses.

Do not stretch, kink or bend refrigerant lines and hoses.

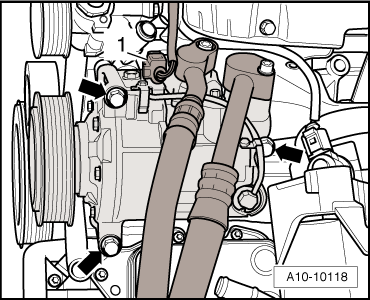

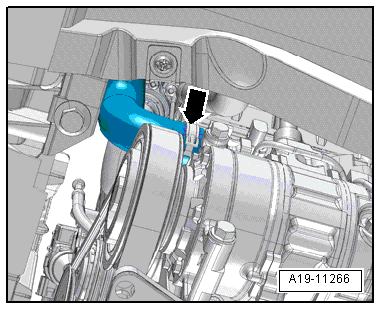

-- Remove the bolts -arrows-. Then remove the A/C compressor from the bracket and tie it up on the left side.

Vehicles through MY 2013:

Fig 47: Removing Connector From Bracket

Courtesy of AUDI OF AMERICA, LLC

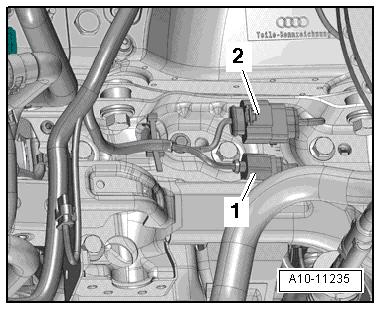

-- Remove the connectors from bracket and disconnect:

for Left/Right Electrohydraulic Engine Mount Solenoid Valve -N144- / -N145- (Version I solenoid valves only)
For the Servotronic Solenoid Valve -N119-

Vehicles from MY 2014:

Fig 48: Identifying Electrohydraulic Engine Mount Solenoid Valve Connectors

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2- and free up the wire.

NOTE: Ignore -item 1-.

-- Remove the bolt -1- and free up the ground cable on the left longitudinal member.

Fig 49: Identifying Ground Cable, Nut And Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove nut -3- and disconnect the connector -2-.

All Vehicles:

Fig 50: Left And Right Connector

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the left and right connector -arrow- from the front vehicle level sensor -G78- / -G289- and free up the wires.

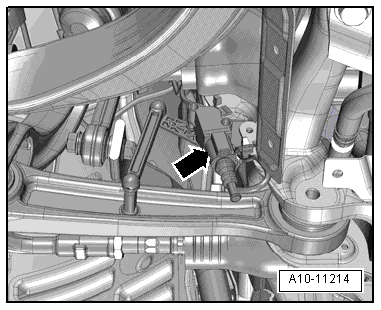

-- Disconnect the connectors -arrow- at the left and right on the front speed sensors.

Fig 51: Identifying Speed Sensor Connector

Courtesy of AUDI OF AMERICA, LLC

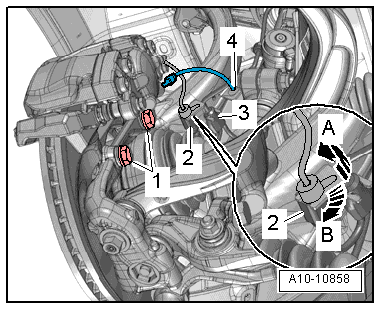

-- Remove the brake caliper and with the brake hose still connected, inside the wheel housing using wire, refer to BRAKE CALIPER, REMOVING AND INSTALLING .

Fig 52: Free Up Electrical Connector

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of damaging brake pistons.

Do not operate brake pedal with brake caliper removed.

-- Repeat the procedure on the other side of the vehicle.

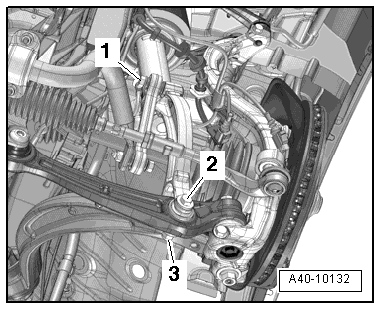

-- Remove the nut -2- and the bolt -1-.

Fig 53: Identifying Nut And Bolt

Courtesy of AUDI OF AMERICA, LLC

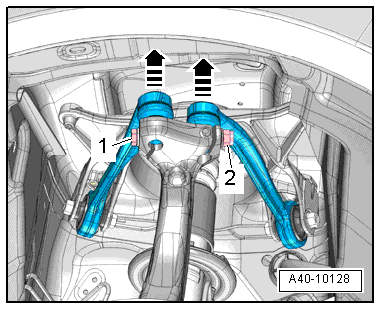

-- Remove the upper control arm upward from the wheel bearing housing -arrows-.

-- Repeat the procedure on the other side of the vehicle.

-- Remove the left and right stabilizer bar bolt -1-.

Fig 54: Identifying Left And Right Stabilizer Bar Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right nuts -3-.

NOTE: The bolt -2- will be removed later.

-- Remove the subframe crossbrace, refer to SUBFRAME CROSSBRACE, REMOVING AND INSTALLING .

Fig 55: Locating Subframe Crossbrace

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

The suspension components could be damaged.

Do not rest the vehicle on its wheels if the subframe mount, the steering gear or the subframe crossbrace are not installed correctly.

-- Remove the steering intermediate shaft from the steering gear push them upward, refer to STEERING INTERMEDIATE SHAFT, REMOVING AND INSTALLING .

Fig 56: Locating Universal Joint Bolt

Courtesy of AUDI OF AMERICA, LLC

NOTE: A vehicle through MY 2013 is shown.

-- Squeeze the retainers -arrows A- and pull the sleeve -1- on the emergency release cable in direction of -arrow B-.

Fig 57: Identifying Emergency Release Cable

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the rear section of the emergency release cable from the front section of the emergency release cable -arrow C-.

-- Disconnect the connector -2-.

Fig 58: Reducing Agent Injector -N474-

Courtesy of AUDI OF AMERICA, LLC

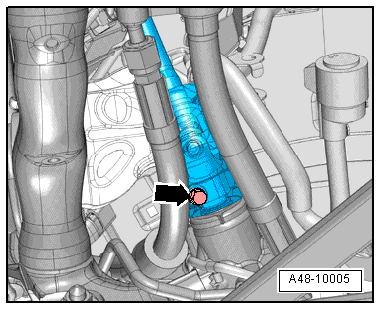

-- Loosen the clamp -3- and remove the Reducing Agent Injector -N474-.

NOTE: Ignore -item 1-.

Vehicles with FWD:

Fig 59: Identifying Tunnel Brace Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the tunnel brace -1-, refer to TUNNEL BRIDGE, REMOVING AND INSTALLING .

-- Loosen the screws and slide the clamping sleeve -arrow- toward the rear.

Fig 60: Locating Clamping Sleeve

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Danger of causing damage to the decoupling element inside the front exhaust pipe.

Do not bend decoupling element in front exhaust pipe more than 10°.

Prepare Scissor Lift Platform:

Fig 61: Identifying Scissor Lift Platform VAS 6131

Courtesy of AUDI OF AMERICA, LLC

-- Equip the Scissor Lift Table VAS 6131B with the Scissor Lift Table - Audi Set VAS 6131/10 and Scissor Lift Table - A8 Set VAS 6131/11, and Scissor Lift Table - Q7 Set VAS 6131/13 as follows:

Platform coordinates	Components from the Scissor Lift Table - Audi Set VAS 6131/10, Scissor Lift Table - A8 Set VAS 6131/11, and Scissor Lift Table - Q7 Set VAS 6131/13
B4	/13-4	/10-4	/10-5	/13-1
G4	/13-4	/10-4	/10-5	/13-1
B6	/10-1	/10-2	/10-5	/10-11
G6	/10-1	/10-2	/10-5	/10-11
A8+C8	/13-6	-	-	/13-2
F8+H8	/13-5	-	-	/13-2
B14	/10-1	/10-4	/10-5	/10-7
G14	/10-1	/10-4	/10-5	/11-1

-- First manually secure the mounting elements to the scissor lift table.

-- Position the Scissor Lift Table VAS 6131B horizontally.

Note bubble level (sight glass) on support platform.

-- Guide the Scissor Lift Table VAS 6131B under the engine/transmission subassembly.

Fig 62: Identifying Subframe Bolts (Tighten To Specifications)

Courtesy of AUDI OF AMERICA, LLC

WARNING:

The subframe could cause an accident if it is not secured.

Do not loosen the subframe bolts -2- and -3- yet.

-- Remove the left and right subframe bolt -1-.

-- Attach mounting elements from the Scissor Lift Table - Audi Set VAS 6131/10 and Scissor Lift Table - Q7 Set VAS 6131/13 at the left and right on the front of the subframe as shown.

Fig 63: Attach At Left And Right Front Of Subframe

Courtesy of AUDI OF AMERICA, LLC

-- Ensure threaded spindles are completely installed.

-- Attach the mounting elements from the Scissor Lift Table - Audi Set VAS 6131/10 at the left and right rear on the subframe crossbrace front connecting points as shown.

Fig 64: Attach At Left And Right Front Of Subframe

Courtesy of AUDI OF AMERICA, LLC

-- Position mounting elements Scissor Lift Table - Q7 Set VAS 6131/13 at the lower left and right on the wheel bearing housing as shown.

Fig 65: Attach At Lower Left And Right Of Wheel Bearing Housing

Courtesy of AUDI OF AMERICA, LLC

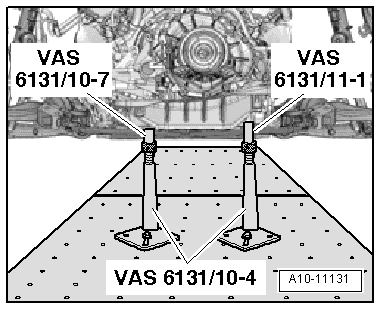

-- Attach mounting elements from the Scissor Lift Table - Audi Set VAS 6131/10 and Scissor Lift Table - A8 Set VAS 6131/11 at the left and right rear of the tunnel crossmember, as shown.

Fig 66: Identifying Mounting Elements

Courtesy of AUDI OF AMERICA, LLC

-- Rotate the mounting element spindles upward until all the mounting pins come into contact with the mounting points.

-- Attach mounting element base plates to Scissor Lift Table VAS 6131 B and tighten to 20 Nm.

-- Mark the location of the subframe and engine carrier to the longitudinal members using a felt-tip pen.

Fig 67: Identifying Subframe Bolts (Tighten To Specifications)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right subframe bolts -2 and 3- in steps.

-- Remove the bolts from the tunnel crossmember -arrows-.

Fig 68: Identifying Tunnel Crossmember Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right bolts -2-.

Fig 69: Identifying Left And Right Stabilizer Bar Bolt

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of damaging hose and wiring connections as well as engine compartment.

Make sure all the hoses and lines between the engine, transmission, subframe and body have been disconnected.
Carefully guide the engine/transmission sub-assembly with subframe out of engine compartment while lowering.

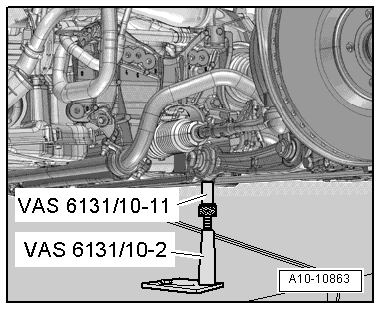

-- Lower the engine/transmission assembly with the Scissor Lift Table VAS 6131 B.

-- Remove the Scissor Lift Table VAS 6131 B with engine/transmission assembly from under the vehicle.
