Radiator/Coolant Fan Overview
WARNING: This page is about a different car, the 2014 Audi A8 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

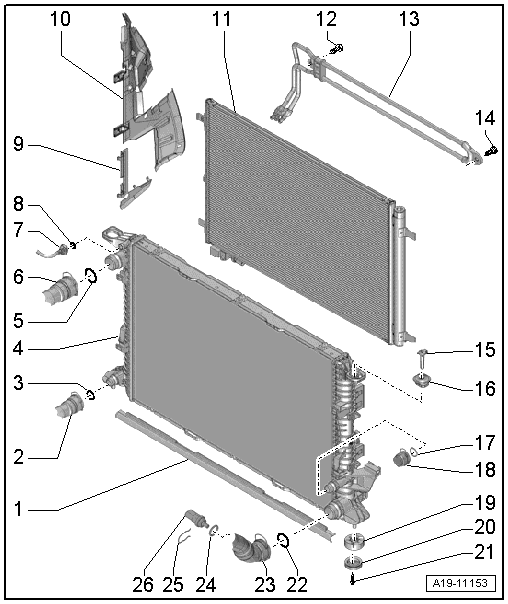

Radiator
- Air Guide
- Coolant Hose
- Lift the retaining clamp to remove
- Connecting, refer to Fig 2
- O-Ring
- Replace
- Radiator
- Removing and installing, refer to RADIATOR, REMOVING AND INSTALLING .
- After replacing, replace all the coolant.
- O-Ring
- Replace
- Coolant Hose
- Lift the retaining clamp to remove
- Connecting, refer to Fig 2
- Coolant Hose
- To the coolant reservoir
- To remove, press the release ring
- Connecting, refer to Fig 2
- O-Ring
- Replace
- Air Guide
- Air Guide
- Condenser
- Removing and installing, refer to CONDENSER, REMOVING AND INSTALLING .
- Bolt
- For vehicles through MY 2013
- Tightening specification, refer to HYDRAULIC FLUID COOLER, REMOVING AND INSTALLING .
- Hydraulic Fluid Cooler
- For vehicles through MY 2013
- Different versions are possible.
- Removing and Installing, refer to HYDRAULIC FLUID COOLER, REMOVING AND INSTALLING .
- Bolt
- For vehicles through MY 2013
- Tightening specification, refer to HYDRAULIC FLUID COOLER, REMOVING AND INSTALLING .
- Retaining Pin
- Disengage and remove using screwdriver
- Rubber Buffer
- O-Ring
- Plug
- Lift the retaining clamp to remove
- Rubber Bushing
- For the radiator
- Rubber Buffer
- Bolt
- 3.5 Nm
- O-Ring
- Replace
- Coolant Hose
- Lift the retaining clamp to remove
- Connecting, refer to Fig 2
- O-Ring
- Replace
- Clamp
- Engine Coolant Temperature Sensor on Radiator Outlet -G83-
- Removing and installing, refer to ENGINE COOLANT TEMPERATURE SENSOR ON RADIATOR OUTLET -G83-, REMOVING AND INSTALLING .
-- Remove the old O-ring -2- in the coolant hose -3-.
-- Coat the new O-ring with coolant and install it in the coolant hose.
-- Press the coolant hose onto the connection -1- until it engages audibly.
-- Press the coolant hose on again and pull to make sure the connection is engaged correctly.
Fan Shroud/Coolant Fan
- Coolant Fan 2 -V177-
- with Coolant Fan Control Module 2 -J671-
- Removing and installing, refer to COOLANT FAN, REMOVING AND INSTALLING .
- Coolant Fan -V7-
- with Coolant Fan Control Module -J293-
- Removing and installing, refer to COOLANT FAN, REMOVING AND INSTALLING .
- Fan Shroud
- Removing and installing, refer to FAN SHROUD, REMOVING AND INSTALLING .
- Bolt
- 3.5 Nm
- Left Air Guide
- Fan Wheel
- The bolt must lock into the hole.
- Bolt
- 5 Nm
- Fan Wheel
- The bolt must lock into the hole.
- Bolt
- 5 Nm
- Right Air Guide
- Bolt
- 3.5 Nm
