Overview - Subframe Mount
WARNING: This page is about a different car, the 2014 Audi A8 Quattro, 2013 Audi A8, and 2012 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.

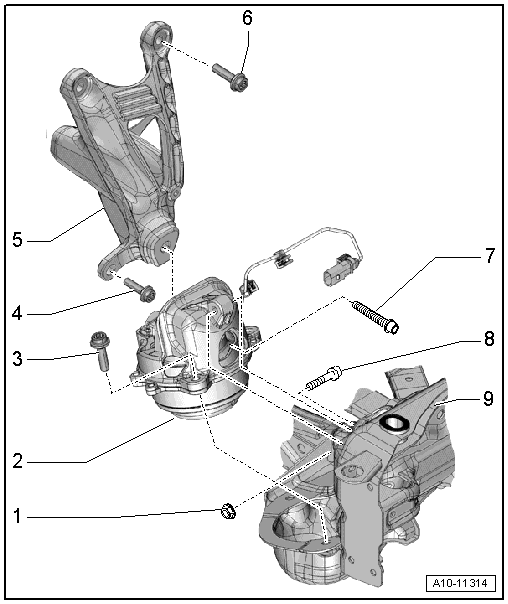

Engine Mount
- Nut
- 20 Nm
- Engine Mount
- Left with the Left Electrohydraulic Engine Mount Solenoid Valve -N144-
- Right with the Right Electrohydraulic Engine Mount Solenoid Valve -N145-
- Removing and installing, refer to ENGINE MOUNT, REMOVING AND INSTALLING .
- Bolt
- Tightening specification, refer to Fig 2
- Bolt
- 40 Nm
- Engine Support
- Bolt
- 40 Nm
- Bolt
- Tightening specification, refer to Fig 2
- Bolt
- Subframe

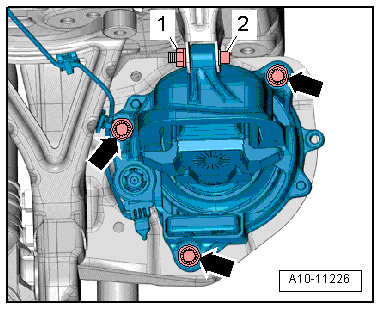

-- Tighten the bolts in 2 steps as follows:
| Step | Bolts | Tightening Specification |
|---|---|---|
| 1. | -Arrows- and -2- | Install all the way in by hand. |
| 2. | -Arrows- and -2- | 20 Nm |
Transmission Mount
- Right Transmission Mount
- With Transmission Mount Valve 1 -N262-
- Removing and installing, refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
- Bolt
- For the tightening specification, refer to ASSEMBLY MOUNTS OVERVIEW .
- Brace
- Bolt
- 20 Nm
- Right Transmission Support
- Bolt
- 20 Nm
- Bolt
- For the tightening specification, refer to ASSEMBLY MOUNTS OVERVIEW .
- Heat Shield
- Bolt
- For the tightening specification, refer to ASSEMBLY MOUNTS OVERVIEW .
- Not installed
- Not installed
- Tunnel Crossmember
- For removing and installing, refer to ASSEMBLY MOUNTS OVERVIEW .
- Rear Transmission Support
- Removing and installing, refer to TRANSMISSION SUPPORT AND REAR TRANSMISSION MOUNT, REMOVING AND INSTALLING
- Nut
- Only remove if the transmission mount must be separated from the transmission support.
- For the tightening specification, refer to ASSEMBLY MOUNTS OVERVIEW
- Bolt
- For the tightening specification, refer to ASSEMBLY MOUNTS OVERVIEW
- Rear Transmission Mount
- Removing and installing, refer to REAR TRANSMISSION MOUNT, REMOVING AND INSTALLING
- Lower Stop
- For the rear transmission mount
- Bolts
- Only remove if the transmission mount must be separated from the transmission support
- For the tightening specification, refer to ASSEMBLY MOUNTS OVERVIEW
- Bolt
- For the tightening specification, refer to ASSEMBLY MOUNTS OVERVIEW
- Bolt
- For the tightening specification, refer to ASSEMBLY MOUNTS OVERVIEW
- Left Transmission Support
- Heat Shield
- Bolt
- For the tightening specification, refer to ASSEMBLY MOUNTS OVERVIEW
- Bolt
- For the tightening specification, refer to ASSEMBLY MOUNTS OVERVIEW
- Brace
- Bolt
- For the tightening specification, refer to ASSEMBLY MOUNTS OVERVIEW
- Left Transmission Mount
- With Transmission Mount Valve 2 -N263-
- Removing and installing, refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING
- Bolt
- For the tightening specification, refer to ASSEMBLY MOUNTS OVERVIEW
- Nut
- For the tightening specification, refer to ASSEMBLY MOUNTS OVERVIEW
