Front Trim Bracket/Compressor/Control Module, Reclining/Multicontour Seat, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi S8, 2014 Audi S8, 2014 Audi A8 Quattro, 2013 Audi S8, and 2013 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all pyrotechnic components safety precautions, refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Remove the front seat, refer to FRONT SEAT, REMOVING .

-- Remove multicontour seat compressor DRIVER AND FRONT PASSENGER MULTICONTOUR SEAT COMPRESSOR -V439- / -V440-, REMOVING AND INSTALLING .

-- Remove memory seat/steering column adjustment control module, refer to DRIVER AND FRONT PASSENGER MEMORY SEAT/STEERING COLUMN ADJUSTMENT CONTROL MODULE -J136- / -J521-, REMOVING AND INSTALLING .

-- Remove the sill panel side trim together with front trim, refer to SEAT SIDE SILL TRIM WITH FRONT TRIM, REMOVING AND INSTALLING .

-- Partially remove the upholstery from the front seat -1- SEAT PAN COVER AND CUSHION, RECLINING SEAT/MULTICONTOUR SEAT, REMOVING AND INSTALLING .

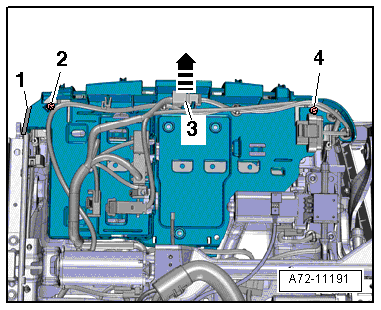

Fig 1: Electric Wire, Bolts & Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect harness connector -3- and free up electrical wire.

-- Remove the bolts -2 and 4- and the bracket -arrow-.
