Front Trim Bracket/Compressor/Control Module, Reclining/Multicontour Seat, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi S8, 2014 Audi S8, 2014 Audi A8 Quattro, 2013 Audi S8, and 2013 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.

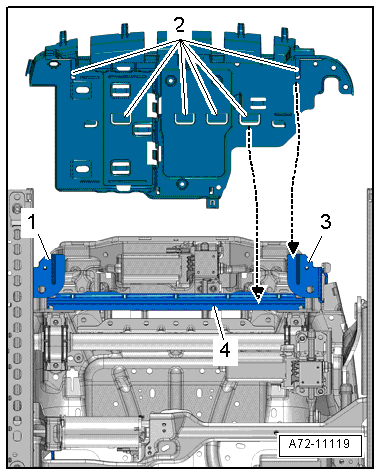

Fig 1: Bracket & Tabs

Courtesy of AUDI OF AMERICA, LLC

-- Insert front bracket -arrows- by making sure that the tabs -2- grip into the bracket -1, 3, 4-.

Installation is performed in reverse order of removal, noting the following:

WARNING:

Follow all pyrotechnic components safety precautions, refer to PYROTECHNIC COMPONENTS SAFETY PRECAUTIONS .
Before handling pyrotechnic components (for example, connecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.
Observe all measures when installing the front seat, refer to FRONT SEAT, STANDARD/MULTICONTOUR SEAT, INSTALLING .
