Overview - Windshield Projection (Head Up Display)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Audi S8, 2015 Audi A8 Quattro, 2014 Audi S8, 2014 Audi A8 Quattro, and 2013 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

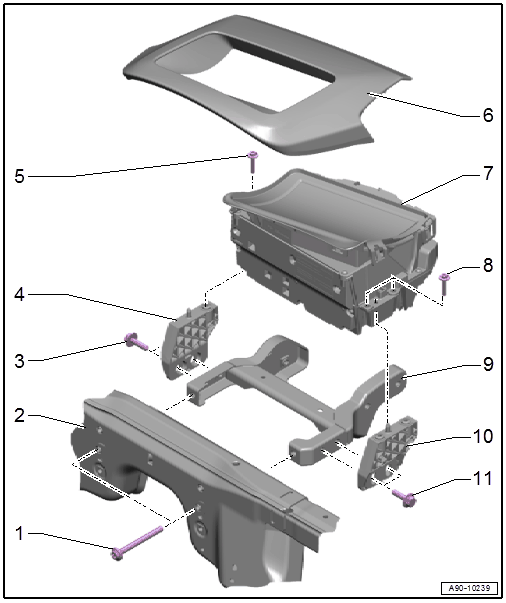

Fig 1: Identifying Windshield Projection (Head Up Display) Overview

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Quantity: 2
- Tightening specification, refer to Overview - Front Door Trim Panel .
Central Tube
Bolt
- Quantity: 2
- Tightening specification, refer to Overview - Front Door Trim Panel .
Left Bracket
- For windshield projection control module
- Removing and Installing, refer to Overview - Front Door Trim Panel
Bolt
- 5.5 Nm
Upper Cover
- Removing and Installing, refer to Overview - Front Door Trim Panel
Windshield Projection Head Up Display Control Module -J898-
- Removing and installing, refer to WINDSHIELD PROJECTION HEAD UP DISPLAY CONTROL MODULE, REMOVING AND INSTALLING .
- Calibrating, refer to WINDSHIELD PROJECTION HEAD UP DISPLAY CONTROL MODULE, CALIBRATING .
Bolt
- 5.5 Nm
- Quantity: 2
Right Bracket
- For windshield projection control module
- Removing and Installing, refer to Overview - Front Door Trim Panel
Mounting Bracket
- Removing and Installing, refer to BRACKET, REMOVING AND INSTALLING .
Bolt
- Quantity: 2
- Tightening specification, refer to Overview - Front Door Trim Panel .
