Power Adjustable Steering Column Control Module -J866-, Removing And Installing: Installing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Audi S8, 2015 Audi A8 Quattro, 2014 Audi S8, 2014 Audi A8 Quattro, and 2013 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
Installation is the reverse of removal, with special attention to the following:

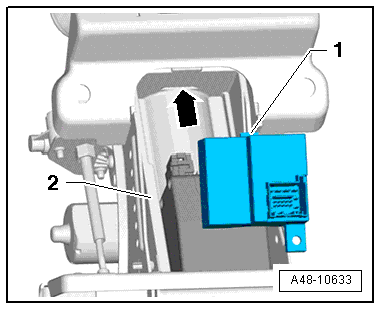

-- Install the Power Adjustable Steering Column Control Module -J866- with the pin -1- into the groove -arrow- on the steering column -2-.
Perform a basic setting if the Power Adjustable Steering Column Control Module -J866- was replaced.
-- Vehicle Diagnostic Tester connect and perform vehicle-specific entry into "Guided Fault Finding".
-- Select the program in "Guided Functions" under the address "09 - electronic central electric".
-- Follow the prompts on the screen.
