Electronic Steering Column Lock Control Module -J764-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Audi S8, 2015 Audi A8 Quattro, 2014 Audi S8, 2014 Audi A8 Quattro, and 2013 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

If replacing the control module, select "replace" in "Guided Functions" on the appropriate control module.

Use the Vehicle Diagnostic Tester.

Follow the prompts on the screen.

-- Remove the steering column, refer to STEERING COLUMN, REMOVING AND INSTALLING .

-- Remove the bolt -1-.

-- Slightly lift the Electronic Steering Column Lock Control Module -J764- -2- and take it off of the steering column in the direction of the -arrow-.

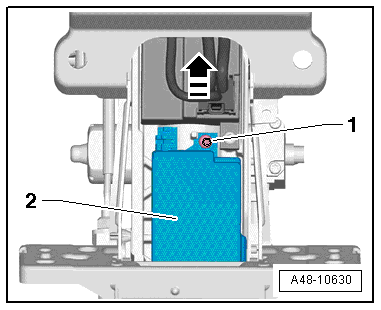

Fig 1: Identifying Electronic Steering Column Lock Control Module And Bolt

Courtesy of AUDI OF AMERICA, LLC

WARNING:

After removing the control module, make sure no dirt or foreign objects enter the steering column.
