Fuel Tank Leak Detection Control Module -J909-, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Audi S8, 2015 Audi A8 Quattro, 2014 Audi S8, 2014 Audi A8 Quattro, and 2013 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
-- Follow all safety precautions, refer to SAFETY PRECAUTIONS .
-- Follow the rules for clean working conditions, refer to CLEAN WORKING CONDITIONS .
CAUTION:
Risk of damaging electronic components when disconnecting the battery.
- Observe the steps for disconnecting the battery.
-- Disconnect the battery Ground (GND) cable -2-, refer to BATTERY .
-- Remove the right rear underbody panels, refer to UNDERBODY PANEL .

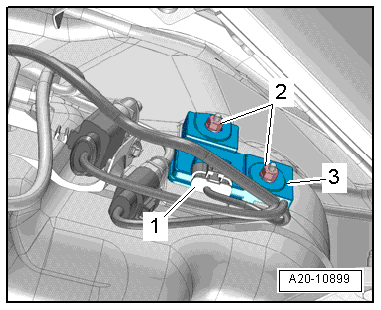

-- Release the connector safety catch and disconnect the connector -1-.
-- Remove the nuts -2- and remove the Fuel Tank Leak Detection Control Module -J909- -3- downward.
