Reducing Agent Metering System Control Module -J880-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2014 Audi A8 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition.
-- Remove the right luggage compartment side trim panel, refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, VEHICLES WITH SELECTIVE CATALYTIC REDUCTION SYSTEM .
-- Remove the right rear lid spring, refer to REAR LID HINGE, REMOVING AND INSTALLING .

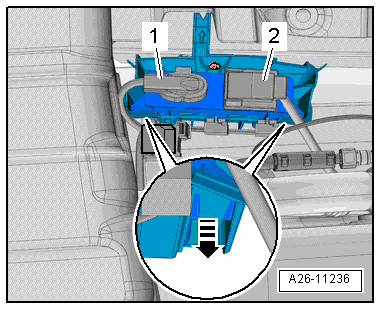

-- Disconnect the connectors -1 and 2-.
-- Release the retainers -arrows- and remove the Reducing Agent Metering System Control Module -J880-.
