Front Axle Toe, Adjusting: Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Audi S8, 2015 Audi A8 Quattro, 2014 Audi S8, 2014 Audi A8 Quattro, and 2013 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

-- Measure the dimension -a- between the tie rod head -1- and the left and right tie rod -2- and make note of the value. The dimension -a- should be the same before and after adjusting on the left and right.

Fig 1: Measuring Tie Rod Head / Tie Rod Dimension

Courtesy of AUDI OF AMERICA, LLC

-- Loosen lock nut -B-.

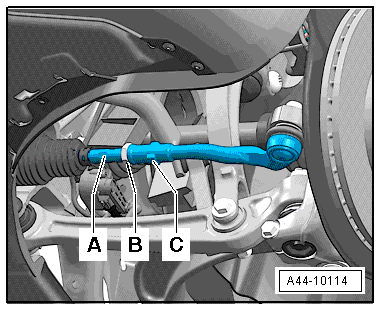

Fig 2: Locating Lock Nut

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Counterhold the tie rod end -C- when loosening the lock nut -B-.

-- Adjust toe on left and right-hand wheels at hex -A-.

Be sure that boot is not twisted after turning tie rods.

Twisted boots wear out quickly.

-- Tighten lock nut -B-, -item 2- OVERVIEW - STEERING GEAR, HYDRAULIC STEERING GEAR => List Item:Nut and check toe-in value again.

After tightening lock nut -B- it is possible that the value deviates slightly.

If the measured toe nevertheless lies within the tolerance, the adjustment is correct.
