Axle Alignment Control Position On Vehicles With Air Suspension, Checking

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Audi S8, 2015 Audi A8 Quattro, 2014 Audi S8, 2014 Audi A8 Quattro, and 2013 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

Axle Alignment Control Position, Checking

Before performing an axle alignment on a vehicle with air suspension, check the curb weight or control position and adapt it again if necessary.

-- Start the axle alignment using the Vehicle Diagnostic Tester in "Guided Functions".

Determining the Height Dimension -a-

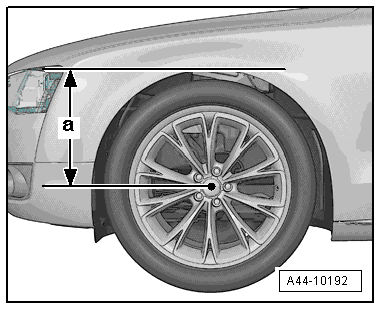

Fig 1: Lifting To Curb Weight Position

Courtesy of AUDI OF AMERICA, LLC

Height dimension -a- is the measurement in mm between center of wheel and lower edge of fender.

-- Determine dimension -a- between the center of the wheel and the lower edge of the fender/wheel housing as illustrated.

Height Dimensions Overview

Chassis	Level	Distance between the center of the wheel and the lower edge of the fender/wheel housing
		Front Axle		Rear axle		Tolerance between the right and left
		Nominal dimension	Drift	Nominal dimension	Drift	Tolerance between the right and left
1BK	auto	410 mm	± 7 mm	405 mm	± 7 mm	<= 10 mm
2MA/2MB	auto	400 mm	± 7 mm	395 mm	± 7 mm	<= 10 mm
1BY	auto	418 mm	± 7 mm	413 mm	± 7 mm	<= 10 mm
