Navigation System with CD Drive Control Module J401 , harness connectors

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

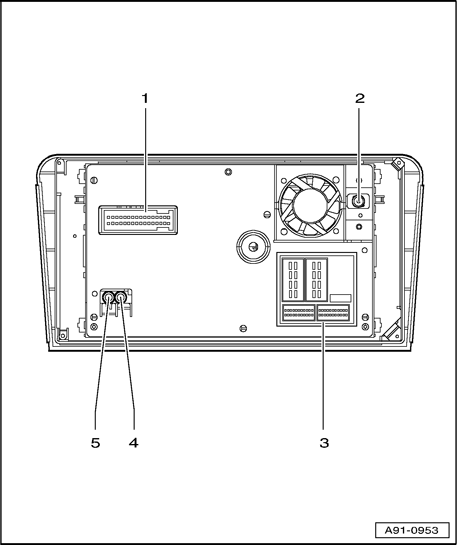

Fig 1: Navigation System With CD Drive Control Module J401 , Harness Connectors

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Black 32-pin multi-pin connector (T32f) to Navigation/TV Tuner J415

2 - Navigation System Antenna R50 GPS connection (blue)

3 - Connection block with four multi-pin connectors and a fuse for unit

4 - IF connection (white) to Antenna Selection Control Module J515 / Left Antenna Module R108

5 - HF connection (white) to Antenna Selection Control Module J515 / Left Antenna Module R108

NOTE:

Unlisted connector terminals are not assigned.

Fig 2: Black 32-Pin Multi-Pin Harness Connector (T32F)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Black 32-pin multi-pin harness connector (T32f)

13 - Right audio input from Navigation/TV Tuner J415

15 - Video input sync. from Navigation/TV Tuner J415

16 - Video input green from Navigation/TV Tuner J415

27 - Screen ground from Navigation/TV Tuner J415

28 - Audio ground from Navigation/TV Tuner J415

29 - Left audio input from Navigation/TV Tuner J415

30 - Video ground from Navigation/TV Tuner J415

31 - Video input blue from Navigation/TV Tuner J415

32 - Video input red from Navigation/TV Tuner J415

Fig 3: Multi-Pin Connector

Courtesy of VOLKSWAGEN UNITED STATES, INC.

A - Brown 8-pin multi-pin connector (T8q)

2 - Right front speaker (+) (not with BOSE)

3 - Left front speaker (+) (not with BOSE)

6 - Right front speaker (-) (not with BOSE)

7 - Left front speaker (-) (not with BOSE)

Fig 4: Multi-Pin Connector

Courtesy of VOLKSWAGEN UNITED STATES, INC.

B - Blue 12-pin multi-pin connector (T12n)

2 - CD ground to CD Changer R41

3 - Speed signal

4 - Permanent positive to CD Changer R41

5 - L-diagnostic

6 - CD data out to CD Changer R41

7 - BOSE coding to ground (only with BOSE)

8 - Left signal from CD Changer R41

9 - Right signal from CD Changer R41

10 - Positive switched to CD Changer R41

11 - CD data in from CD Changer R41

12 - CD CLK from CD Changer R41

Fig 5: Multi-Pin Connector

Courtesy of VOLKSWAGEN UNITED STATES, INC.

C - Green 12-pin multi-pin connector (T12m)

1 - Microphone input (-) from Telephone Microphone R38 (from MY06)

2 - Signal from Back-Up Light Switch F4 (not used)

3 - Left front signal to Amplifier R12 (only with BOSE)

4 - Microphone output (-) to Telephone Transceiver R36 (from MY06)

5 - Left rear signal to Amplifier R12

6 - NF (-) from Telephone Transceiver R36 /preliminary setup for cell phone package

7 - Microphone input (+) from Telephone Microphone R38 (from MY06)

8 - Signal ground to Radio R12

9 - Right front signal to Amplifier R12 (only with BOSE)

10 - Microphone output (+) to Telephone Transceiver R36 (from MY06)

11 - Right rear signal to Amplifier R12

12 - NF (+) from Telephone Transceiver R36 /preliminary setup for cell phone package

Fig 6: Multi-Pin Connector

Courtesy of VOLKSWAGEN UNITED STATES, INC.

D - Black 8-pin multi-pin connector D (T16j)

9 - CAN-Bus High (Infotainment)

10 - CAN-Bus Low (Infotainment)

11 - NF mute from Telephone Transceiver R36 (through MY04)

12 - Terminal 31

13 - Positive switched to Amplifier R12

14 - Anti-theft warning system ground from Comfort System Central Control Module J393

15 - Terminal 30

16 - Permanent positive (not used)
