Total overview - Sedan component locations
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

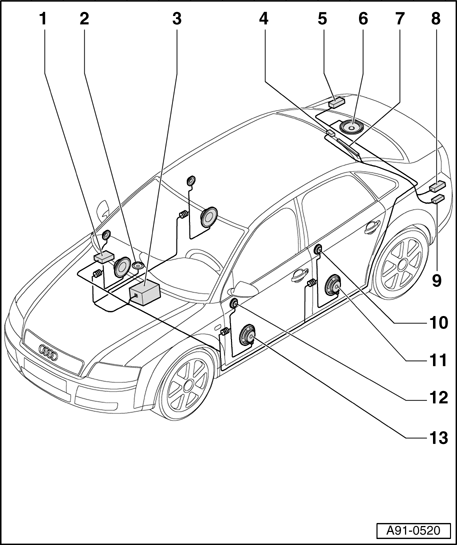

1 - CD Changer R41
- In glove compartment
- Connections
- Removing and installing → CD Changer R41 , removing and installing
2 - Inside Loudspeaker R70
- In front instrument panel, center
- Removing and installing → Inside Loudspeaker R70 , removing and installing
3 - Operating Electronics, Navigation Control Module J402
- In center console, at top
- Connections
- Removing and installing → Operating Electronics, Navigation Control Module J402 , removing and installing
4 - Navigation System Antenna R50
- Behind roof end trim
- Removing and installing → Navigation System Antenna R50 , Sedan, removing and installing
5 - Digital Sound System Control Module R12
- Behind luggage compartment right side trim
- Connections
- Removing and installing → Amplifier R12 , Sedan, removing and installing
- BOSE connections
- BOSE, removing and installing → BOSE Amplifier R12 , Sedan, removing and installing
6 - Bass Loudspeaker R100
- In parcel shelf
- Removing and installing → Bass Loudspeaker R100 , Sedan, removing and installing
7 - Antenna Selection Control Module J515
- Behind roof end trim
- Connections
- Removing and installing → Antenna Amplifier R24 / Antenna Selection Control Module J515 , sedan, removing and installing
8 - Navigation Interface R94
- Behind luggage compartment left side trim
- Connections
- Removing and installing → Navigation Interface R94 , Sedan, removing and installing
9 - Navigation/TV Tuner J415
- Behind luggage compartment left side trim
- Connections
- Removing and installing → Navigation/TV Tuner J415 , removing and installing
10 - Left Rear Midrange Speaker R34 / Right Rear Midrange Speaker R35
- In top of rear doors
- Removing and installing
11 - Left Rear Bass Speaker R15 and Right Rear Bass Speaker R17
- In bottom of rear doors
- Removing and installing
12 - Left Front Midrange Speaker R26 / Right Front Midrange Speaker R27
- In top of front doors
- Removing and installing
13 - Left Front Bass Speaker R21 / Right Front Bass Speaker R23
- In bottom of front doors
- Removing and installing
